ILD8150E - Infineon

Description: Infineon LED DRIVER

Download ILD8150E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

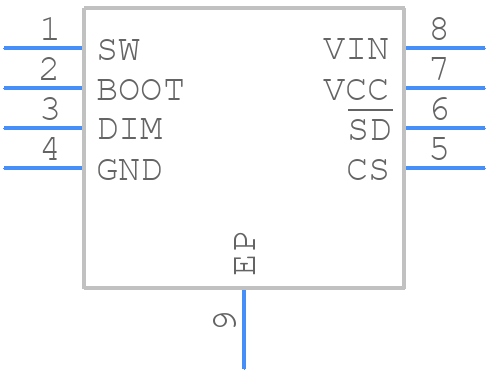

ILD8150E - Infineon - PCB symbol
click to zoom
PCB Footprints
ILD8150E - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-DSO-8 with exposed pad
click to zoom
3D Models
ILD8150E - Infineon - 3D model - Small Outline Packages - PG-DSO-8 with exposed pad
click to zoom

ILD8150E Details

  • Manufacturer Part Number:

    ILD8150E

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    8

  • Data Input Mode:

    SERIAL

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.95 mm

  • Moisture Sensitivity Level:

    3

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    3

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    CONSTANT-CURRENT

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Seated Height-Max:

    1.7 mm

  • Supply Current-Max:

    2.3 mA

  • Supply Voltage-Max:

    80 V

  • Supply Voltage-Min:

    8 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

  • fmax-Min:

    0.02 MHz

ILD8150E Frequently Asked Questions (FAQs)

  • Infineon provides a recommended PCB layout in the application note AN2019-07, which includes guidelines for thermal vias, copper thickness, and component placement to ensure optimal thermal performance.
  • Infineon recommends following the guidelines in the application note AN2019-08, which provides information on PCB design, component selection, and shielding to ensure EMC compliance.
  • The maximum allowed voltage drop across the ILD8150E is 0.5 V, as specified in the datasheet. Exceeding this value may affect the device's performance and reliability.
  • The ILD8150E is rated for operation up to 150°C, but Infineon recommends derating the device's current capability at higher temperatures to ensure reliability. Consult the datasheet and application notes for more information.
  • Infineon provides a troubleshooting guide in the application note AN2019-09, which covers common issues, diagnostic techniques, and repair procedures for the ILD8150E.
