ILDC11-15E footprint, schematic symbol and 3D model by NVE

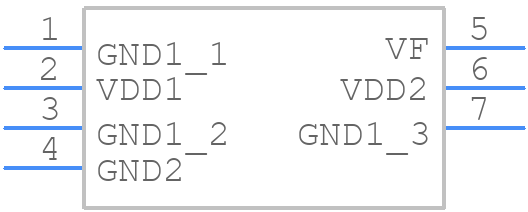

Symbol

click to zoom

PCB Footprints

ILDC11-15E - NVE PCB footprint - Other - Other - 3 mm x 5.5 mm DFN6

click to zoom

3D Models

ILDC11-15E - NVE - 3D model - Other - 3 mm x 5.5 mm DFN6

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ILDC11-15E
Part Number ILDC11-15E
Manufacturer NVE
Pin Count 7
Part Category Power Supply
Package Category Other
Footprint Name Other - 3 mm x 5.5 mm DFN6
Released Date Feb 15, 2023
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

ILDC11-15E Details

Manufacturer Part Number:
ILDC11-15E
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
DFN-6
Country Of Origin:
USA
ECCN Code:
EAR99
Manufacturer:
NVE Corporation
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Approvals:
CE, IEC, UL, VDE
Input Voltage-Max:
3.6 V
Input Voltage-Min:
3 V
Input Voltage-Nom:
3.3 V
JESD-30 Code:
R-PDSO-N6
Length:
5.5 mm
Line Regulation-Max:
1.2%
Load Regulation-Max:
6%
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
6
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
0.08 A
Output Voltage-Max:
3.45 V
Output Voltage-Min:
3 V
Output Voltage-Nom:
3.3 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
VSON
Package Equivalence Code:
SOLCC6,.11,37
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, VERY THIN PROFILE
Protections:
SHORT CIRCUIT, THERMAL
Ripple Voltage (Main Out):
0.0017675 Vrms
Screening Level:
IEC 60601-1; IEC 62368-1, 2 X MOPP
Seated Height-Max:
0.9 mm
Surface Mount:
YES
Technology:
HYBRID
Terminal Form:
NO LEAD
Terminal Pitch:
0.95 mm
Terminal Position:
DUAL
Total Power Output-Max:
0.25 W
Trim/Adjustable Output:
NO
Warm-up Time:
0.006 s
Width:
3 mm

ILDC11-15E Frequently Asked Questions (FAQs)

NVE recommends a symmetrical PCB layout with a ground plane underneath the device to minimize noise and EMI. The device should be placed as close as possible to the signal source, and the output should be routed away from the input to prevent feedback.
The ILDC11-15E requires a bias current of 1-10 mA to operate. Ensure that the bias current is within this range by using a suitable resistor value in the bias circuit. Additionally, the bias voltage should be between 3.5 V and 5.5 V.
The ILDC11-15E is rated for operation from -40°C to 125°C. However, the device's performance may degrade at extreme temperatures, so it's recommended to operate within a temperature range of -20°C to 85°C for optimal performance.
The ILDC11-15E has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures when handling the device. Use an ESD wrist strap or mat, and ensure that the device is stored in an ESD-safe environment.
The ILDC11-15E is designed to operate in environments with moderate vibration. However, if the device will be subjected to extreme vibration, it's recommended to use a vibration-dampening material or a shock-absorbing mount to minimize the effects of vibration on the device's performance.
