ILN2003AN - Semic

Description: FOD814A300W

Download ILN2003AN Model

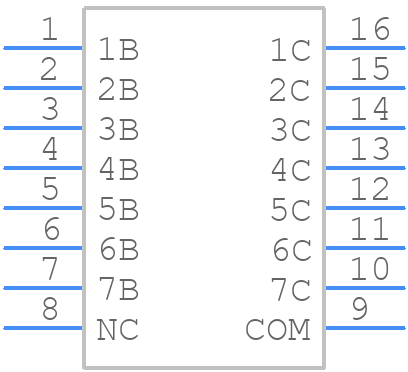

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ILN2003AN - Semic PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - ILN2003AN
click to zoom
3D Models
ILN2003AN - Semic  - 3D model - Dual-In-Line Packages - ILN2003AN
click to zoom

ILN2003AN Details

  • Manufacturer Part Number:

    ILN2003AN

  • Part Life Cycle Code:

    Contact Manufacturer

  • ECCN Code:

    EAR99

  • Manufacturer:

    IKSemicon Co Ltd

  • Collector-Emitter Voltage-Max:

    50 V

  • Configuration:

    COMPLEX

  • JESD-30 Code:

    R-PDIP-T16

  • Number of Elements:

    7

  • Number of Terminals:

    16

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Polarity/Channel Type:

    NPN

  • Surface Mount:

    NO

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

ILN2003AN Frequently Asked Questions (FAQs)

  • A 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer is recommended. This helps to dissipate heat efficiently and reduces thermal resistance.
  • Ensure that the device is operated within the recommended temperature range (TJ = -40°C to 150°C). Use a heat sink or thermal interface material to improve heat dissipation. Also, consider derating the device's power handling at high temperatures.
  • A reflow soldering profile with a peak temperature of 260°C and a dwell time of 20-30 seconds is recommended. Avoid exceeding 280°C to prevent damage to the device.
  • Handle the device with ESD-protective equipment and follow proper ESD-handling procedures. Use an ESD-protective bag or container for storage and transportation.
  • A 10nF to 100nF input capacitance is recommended to filter out high-frequency noise and ensure stable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ILN2003AN Overview

Use the download button to access the ILN2003AN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ILN20, or try a keyword search, such as Power Bipolar Transistors
