IM06B50GC1 - Infineon

Description: Mini 600 V, 50 A three-phase intelligent power module , 1.0 K/W , 216 W , -40 ~ 150 °C

Download IM06B50GC1 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this IM06B50GC1 model

Email notifications will be applied after download.

Send part feedback

Symbol

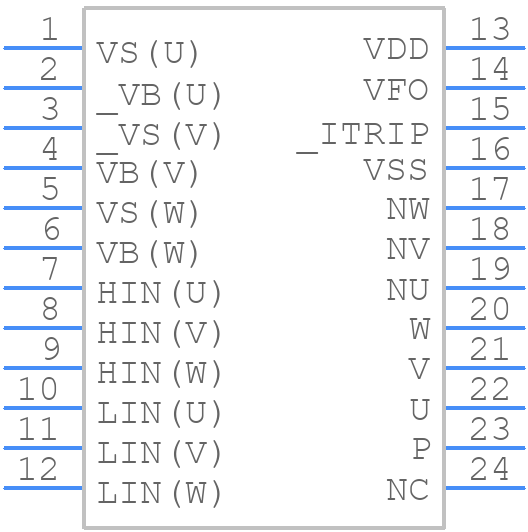

IM06B50GC1 - Infineon - PCB symbol

PCB Footprints

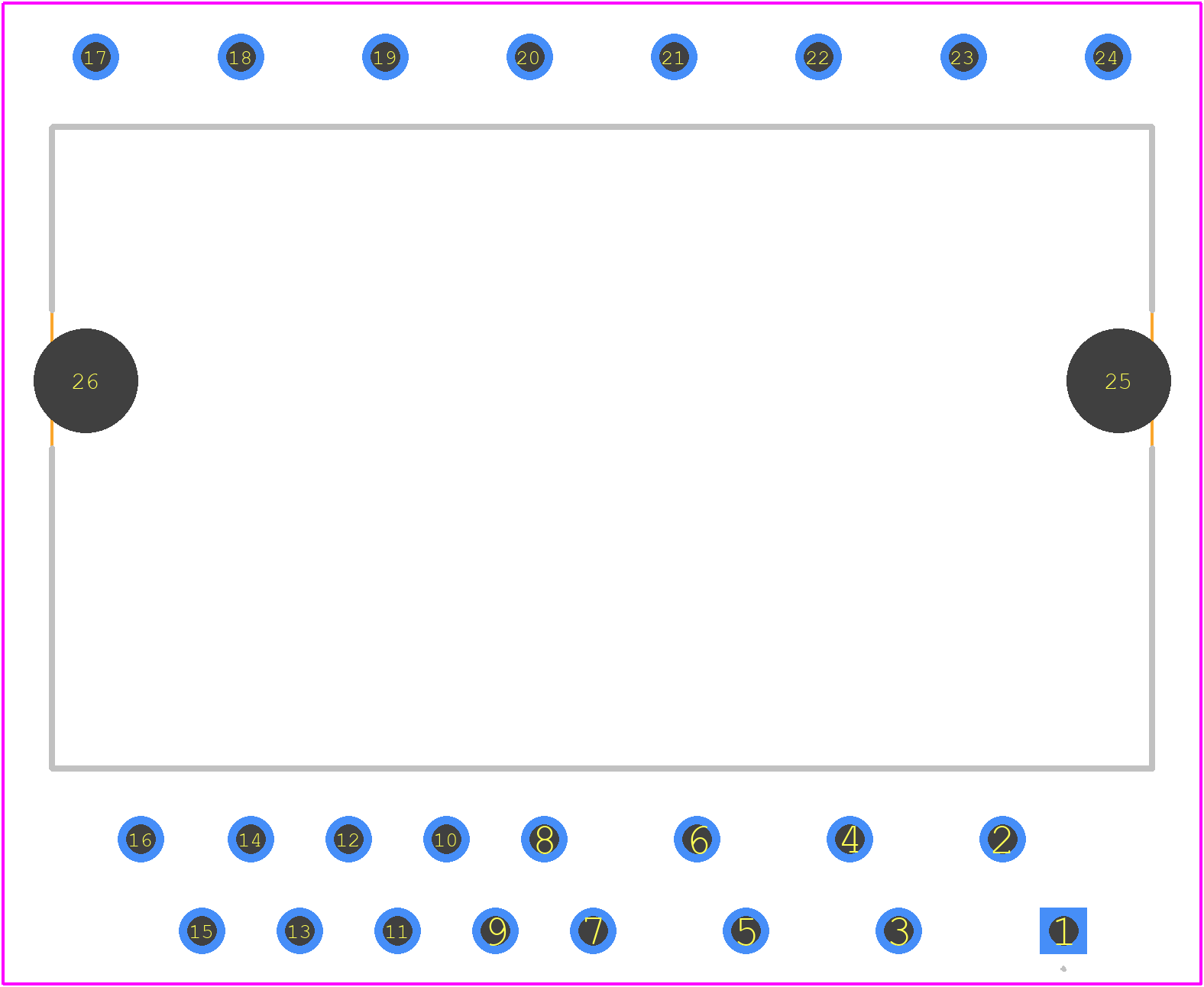

IM06B50GC1 - Infineon PCB footprint - Other - Other - DIP 36x21D_2026

Datasheet Download Datasheet
Stock & Prices Price & Stock for IM06B50GC1
Part Number IM06B50GC1
Manufacturer Infineon
Pin Count 24
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - DIP 36x21D_2026
Released Date Apr 25, 2026
Last Modified Date Apr 25, 2026 12:00 PM UTC
Pinout / Pin List Click Here (Member Only)

IM06B50GC1 Details
