IM4815SA - XP POWER

Description: XP Power Through Hole 2W Isolated DC-DC Converter, Vin 18 → 75 V dc, I/O isolation 1.5kV dc, Vout 15V dc

Download IM4815SA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

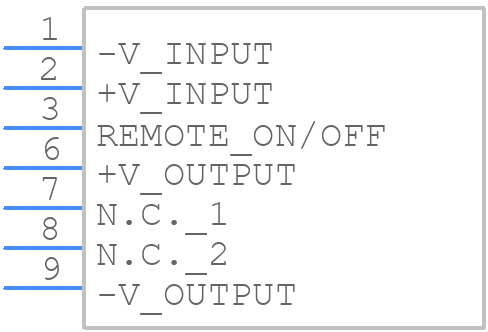

IM4815SA - XP POWER - PCB symbol
click to zoom
PCB Footprints
IM4815SA - XP POWER PCB footprint - Other - Other - IM4815SA-1
click to zoom
3D Models
IM4815SA - XP POWER - 3D model - Other - IM4815SA-1
click to zoom

IM4815SA Details

  • Manufacturer Part Number:

    IM4815SA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    Module-7

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    6

  • Additional Feature:

    SEATED HT CALCULATED

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    75 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    48 V

  • JESD-30 Code:

    R-XSMA-T7

  • Length:

    26 mm

  • Load Regulation-Max:

    0.5%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    75 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.135 A

  • Output Voltage-Max:

    15.15 V

  • Output Voltage-Min:

    14.85 V

  • Output Voltage-Nom:

    15 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    SMA

  • Package Equivalence Code:

    SIP7/9,.12

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    13 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    SINGLE

  • Total Power Output-Max:

    2 W

  • Trim/Adjustable Output:

    NO

  • Width:

    9.2 mm

IM4815SA Frequently Asked Questions (FAQs)

  • The maximum capacitance load for the IM4815SA is 10uF. Exceeding this value may affect the stability of the output voltage.
  • The IM4815SA is rated for operation up to 80°C ambient temperature, but derating is required above 60°C. Consult the datasheet for derating curves.
  • The IM4815SA meets various safety certifications, including UL60950-1, EN60950-1, and IEC60950-1. However, additional testing and certification may be required for specific applications. Consult XP Power's certification documentation and/or contact their technical support.
  • XP Power provides a recommended PCB layout in the datasheet, which includes guidelines for component placement, thermal vias, and copper pours. Following this layout ensures optimal thermal performance and minimizes electromagnetic interference (EMI).
  • Yes, the IM4815SA can be used in redundant or parallel configurations, but additional circuitry and design considerations are required to ensure proper operation and fault tolerance. Consult XP Power's application notes and/or contact their technical support for guidance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IM4815SA Overview

Use the download button to access the IM4815SA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IM481, or try a keyword search, such as Power Supply Modules
