IMM0112S12 footprint, schematic symbol and 3D model by XP POWER

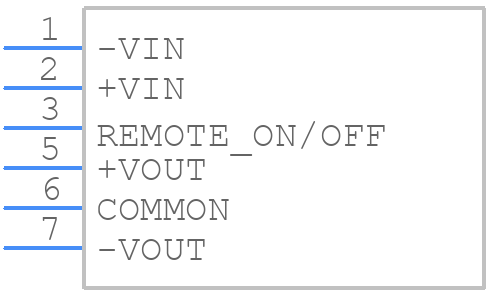

Symbol

click to zoom

PCB Footprints

IMM0112S12 - XP POWER PCB footprint - Other - Other - IMM01

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for IMM0112S12
Part Number IMM0112S12
Manufacturer XP POWER
Pin Count 6
Part Category Power Supply
Package Category Other
Footprint Name Other - IMM01
Released Date Dec 12, 2018
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

IMM0112S12 Details

Manufacturer Part Number:
IMM0112S12
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
SIP-7/6
ECCN Code:
EAR99
Manufacturer:
XP Power
YTEOL:
6
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Input Voltage-Max:
18 V
Input Voltage-Min:
9 V
Input Voltage-Nom:
12 V
JESD-30 Code:
R-XSMA-P6
Length:
19.5 mm
Load Regulation-Max:
2%
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
6
Operating Temperature-Max:
60 °C
Operating Temperature-Min:
-20 °C
Output Voltage-Max:
12.12 V
Output Voltage-Min:
11.88 V
Output Voltage-Nom:
12 V
Package Body Material:
UNSPECIFIED
Package Code:
SMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Seated Height-Max:
11.6 mm
Surface Mount:
NO
Technology:
HYBRID
Temperature Grade:
OTHER
Terminal Form:
PIN/PEG
Terminal Pitch:
2.54 mm
Terminal Position:
SINGLE
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Total Power Output-Max:
1 W
Trim/Adjustable Output:
NO
Width:
9.2 mm

IMM0112S12 Frequently Asked Questions (FAQs)

XP Power recommends a PCB layout with a large copper area for heat dissipation, and a minimum of 2oz copper thickness. A thermal via array under the module can also improve heat transfer.
To ensure reliable start-up and operation with a high capacitive load, XP Power recommends adding a soft-start circuit and/or an input capacitor to reduce inrush current and voltage stress.
The IMM0112S12 can operate with an input voltage deviation of up to ±10% of the nominal input voltage without compromising reliability or performance.
While the IMM0112S12 is rated for operation up to 80°C, XP Power recommends derating the output power by 2.5% per °C above 60°C to ensure reliable operation in high-temperature environments.
XP Power recommends using an external OVP circuit, such as a zener diode or a dedicated OVP IC, to protect the module from input voltage surges or spikes.

Trust Checks

Expert Contribution

System Verified

Community Approved

IMM0112S12 Overview

Use the download button to access the IMM0112S12 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like IMM01, or try a keyword search, such as Power Supply Modules
