IMM0505S05 footprint, schematic symbol and 3D model by XP POWER

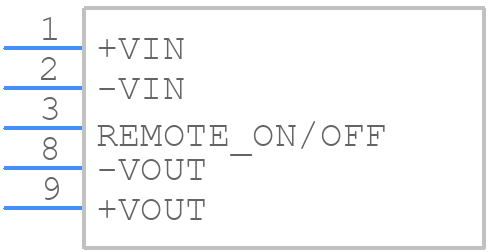

Symbol

click to zoom

PCB Footprints

IMM0505S05 - XP POWER PCB footprint - Other - Other - IMM0505S05-1

click to zoom

3D Models

IMM0505S05 - XP POWER - 3D model - Other - IMM0505S05-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for IMM0505S05
Part Number IMM0505S05
Manufacturer XP POWER
Pin Count 5
Part Category Power Supply
Package Category Other
Footprint Name Other - IMM0505S05-1
Released Date Feb 3, 2023
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

IMM0505S05 Details

Manufacturer Part Number:
IMM0505S05
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
SIP-9/5
ECCN Code:
EAR99
Manufacturer:
XP Power
YTEOL:
5
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Approvals:
ANSI, CB, CE, CSA, EN, IEC, TUV, UKCA, UL
Efficiency (Main Output):
82%
Input Voltage-Max:
9 V
Input Voltage-Min:
4.5 V
Input Voltage-Nom:
5 V
JESD-30 Code:
R-PSIP-T5
JESD-609 Code:
e3
Length:
26 mm
Line Regulation-Max:
0.5%
Load Regulation-Max:
2%
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
5
Operating Temperature-Max:
100 °C
Operating Temperature-Min:
-20 °C
Output Current-Max:
1 A
Output Voltage-Max:
5.1 V
Output Voltage-Min:
4.9 V
Output Voltage-Nom:
5 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
SIP
Package Equivalence Code:
SIP5/9,.07
Package Shape:
RECTANGULAR
Package Style:
IN-LINE
Protections:
OVER LOAD; SHORT CIRCUIT
Ripple Voltage (Main Out):
0.02651 Vrms
Screening Level:
IEC/EN 60601-1, One MOPP
Seated Height-Max:
13 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
2.54 mm
Terminal Position:
SINGLE
Total Power Output-Max:
5 W
Trim/Adjustable Output:
NO
Width:
9.3 mm

IMM0505S05 Frequently Asked Questions (FAQs)

XP Power recommends a PCB layout with a large copper area for heat dissipation, and a thermal management system with a heat sink and thermal interface material to keep the junction temperature below 125°C.
To ensure EMC, XP Power recommends following the layout and grounding guidelines in the datasheet, using a metal enclosure, and adding EMI filters and shielding as necessary to meet relevant EMC standards.
The derating curve for the IMM0505S05 is typically provided in the datasheet or can be obtained from XP Power's application notes. It shows the reduction in output power as a function of temperature, and engineers should use this curve to ensure the module operates within its specified ratings.
The IMM0505S05 is designed to meet the vibration and shock requirements of IEC 60068-2-6 and IEC 60068-2-27, respectively. However, engineers should consult XP Power's application notes and perform additional testing to ensure the module meets the specific requirements of their application.
The MTBF of the IMM0505S05 is typically provided in the datasheet or can be obtained from XP Power's reliability reports. Engineers should use this data to estimate the module's reliability and plan for maintenance and replacement schedules accordingly.

Trust Checks

Community Provided

System Verified

Community Approved

IMM0505S05 Overview

Use the download button to access the IMM0505S05 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like IMM05, or try a keyword search, such as Power Supply Modules
