IMM0512S3V3 - XP POWER

Description: XP Power IMM05 5W Isolated DC-DC Converter Through Hole, Vin 9 → 18 V dc, Vout 3.3V dc Medical Approved, I/O

Download IMM0512S3V3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

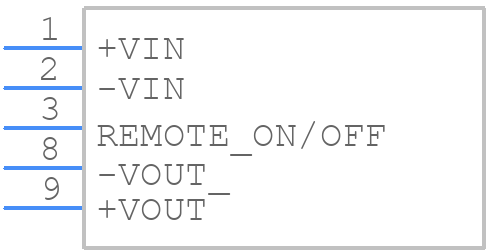

IMM0512S3V3 - XP POWER - PCB symbol
click to zoom
PCB Footprints
IMM0512S3V3 - XP POWER PCB footprint - Other - Other - IMM0512S3V3-1
click to zoom
3D Models
IMM0512S3V3 - XP POWER - 3D model - Other - IMM0512S3V3-1
click to zoom

IMM0512S3V3 Details

  • Manufacturer Part Number:

    IMM0512S3V3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SIP-9/5

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    5

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    ANSI, CB, CE, CSA, EN, IEC, TUV, UKCA, UL

  • Efficiency (Main Output):

    82%

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PSIP-T5

  • JESD-609 Code:

    e3

  • Length:

    26 mm

  • Line Regulation-Max:

    0.5%

  • Load Regulation-Max:

    2%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Current-Max:

    1.2 A

  • Output Voltage-Max:

    3.366 V

  • Output Voltage-Min:

    3.234 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SIP

  • Package Equivalence Code:

    SIP5/9,.07

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Protections:

    OVER LOAD; SHORT CIRCUIT

  • Ripple Voltage (Main Out):

    0.02651 Vrms

  • Screening Level:

    IEC/EN 60601-1, One MOPP

  • Seated Height-Max:

    13 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    SINGLE

  • Total Power Output-Max:

    5 W

  • Trim/Adjustable Output:

    NO

  • Width:

    9.3 mm

IMM0512S3V3 Frequently Asked Questions (FAQs)

  • XP Power recommends a PCB layout with a solid copper ground plane and a minimum of 2oz copper thickness to ensure optimal thermal performance. Additionally, keeping the input and output capacitors close to the module can help reduce noise and improve efficiency.
  • To ensure reliable start-up and operation with a low input voltage, XP Power recommends using a high-quality input capacitor with low ESR and a sufficient capacitance value. Additionally, the input voltage should be slowly ramped up to the nominal value to prevent inrush currents.
  • The maximum allowable capacitance on the output of the IMM0512S3V3 is 2200uF. Exceeding this value may cause instability or oscillation in the output voltage.
  • The IMM0512S3V3 is rated for operation up to 80°C ambient temperature. However, derating may be necessary for temperatures above 60°C. Consult the datasheet and XP Power's application notes for more information on thermal derating and high-temperature operation.
  • To troubleshoot output voltage deviations or instability, check the input voltage, output capacitance, and PCB layout. Ensure that the input voltage is within the specified range, and the output capacitance is within the recommended value. Also, verify that the PCB layout is optimized for thermal performance and noise reduction.
