IN74HC193AD - INTEGRAL

Description: Presettable 4-Bit Binary UP/DOWN Counter High-Performance Silicon-Gate CMOS

Download IN74HC193AD Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this IN74HC193AD model

Email notifications will be applied after download.

Send part feedback

Symbol

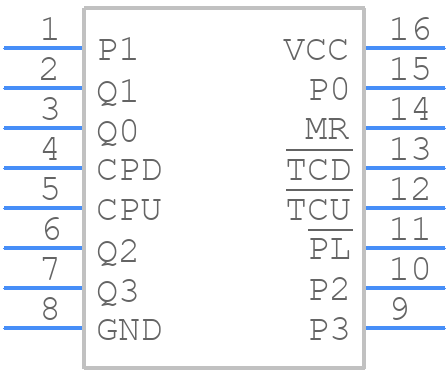

IN74HC193AD - INTEGRAL - PCB symbol

PCB Footprints

IN74HC193AD - INTEGRAL PCB footprint - Small Outline Packages - Small Outline Packages - (MS - 012AC)

3D Models

IN74HC193AD - INTEGRAL - 3D model - Small Outline Packages - (MS - 012AC)

Datasheet Download Datasheet
Stock & Prices Price & Stock for IN74HC193AD
Part Number IN74HC193AD
Manufacturer INTEGRAL
Pin Count 16
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - (MS - 012AC)
Released Date Sep 28, 2018
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

IN74HC193AD Details
