Power Integrations provides a recommended PCB layout in their application notes (e.g., AN-63) and evaluation board designs. It's essential to follow these guidelines to ensure optimal thermal performance and minimize thermal resistance.
Power Integrations provides a transformer selection guide in their application notes (e.g., AN-41) and online tools (e.g., Transformer Design Tool). You can also consult with transformer manufacturers or use online resources to select a suitable transformer for your specific design requirements.
The recommended capacitors are typically specified in the datasheet or application notes. For the INN3162C-H102-TL, Power Integrations recommends using X7R or X5R ceramic capacitors with a voltage rating of 50V or higher for the input and output capacitors. The specific capacitor values and types may vary depending on the design requirements and operating conditions.
To ensure EMC compliance, follow the guidelines in the datasheet and application notes, and consider the following: use a shielded transformer, keep the layout compact, use a common-mode choke, and add EMI filters as needed. Additionally, consult with EMC experts and perform EMC testing to ensure compliance with relevant standards.
Thermal design considerations include: using a heat sink or thermal pad, ensuring good airflow, keeping the IC away from heat sources, and using thermal interface materials (TIMs) as needed. Power Integrations provides thermal design guidelines in their application notes and datasheets.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
INN3162C-H102-TL Overview

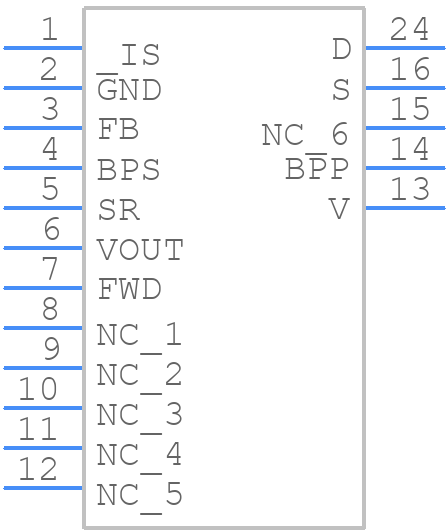

Use the download button to access the INN3162C-H102-TL schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like INN31,
or try a keyword search, such as Switching Regulator or Controllers
