A good PCB layout for optimal thermal performance involves placing the INN3168C-H101-TL near a thermal pad or a heat sink, and ensuring good airflow around the component. The datasheet provides a recommended PCB layout, but it's essential to consult with a thermal expert or perform thermal simulations to ensure optimal performance.
To ensure EMC compliance, follow the recommended layout and grounding guidelines in the datasheet, and consider using shielding, filtering, and decoupling capacitors as needed. Additionally, perform EMC testing and simulation to ensure compliance with relevant standards.
The maximum allowed voltage stress on the INN3168C-H101-TL is 650V, as specified in the datasheet. Exceeding this voltage can lead to component failure or reduced lifespan.
To troubleshoot issues with the INN3168C-H101-TL, start by checking the PCB layout, component placement, and thermal management. Verify that the input voltage, current, and frequency are within the specified ranges. Use oscilloscopes and thermal imaging cameras to identify potential issues. Consult the datasheet and application notes for guidance, and contact Power Integrations' support team if necessary.
The INN3168C-H101-TL is a high-reliability component, but it's essential to evaluate its suitability for safety-critical applications. Consult the datasheet and relevant industry standards (e.g., IEC 61508, ISO 26262) to ensure the component meets the required safety and reliability standards.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
INN3168C-H101-TL Overview

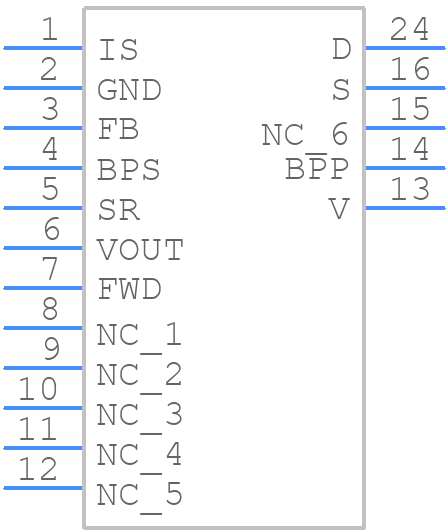

Use the download button to access the INN3168C-H101-TL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like INN31,
or try a keyword search, such as Switching Regulator or Controllers
