The maximum operating temperature range for the INN3266C-H210-TL is -40°C to 150°C, with a junction temperature (TJ) of up to 150°C.
Proper cooling can be achieved by using a heat sink with a thermal resistance of less than 10°C/W, and ensuring good airflow around the device. Additionally, the PCB layout should be designed to minimize thermal impedance.
The recommended input capacitor value is 10uF to 22uF, with a voltage rating of at least 25V. A low-ESR ceramic or film capacitor is recommended, such as the X7R or X5R dielectric type.
To prevent EMI, use a shielded transformer, keep the layout compact, and use a common-mode choke or EMI filter on the input and output lines. Additionally, ensure good grounding and decoupling of the device.
The maximum output power of the INN3266C-H210-TL depends on the input voltage, output voltage, and operating frequency. Typically, it can deliver up to 65W of output power with an input voltage of 230VAC and an output voltage of 12VDC.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
INN3266C-H210-TL Overview

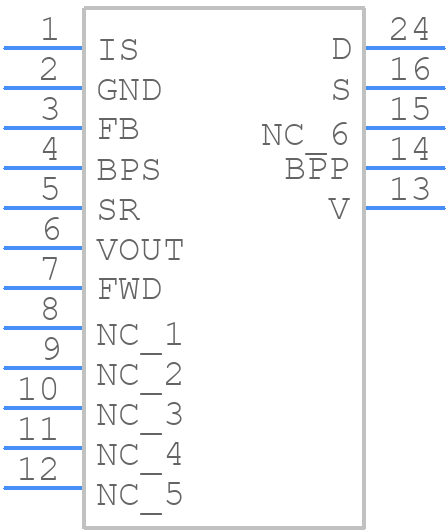

Use the download button to access the INN3266C-H210-TL schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like INN32,
or try a keyword search, such as Switching Regulator or Controllers
