Power Integrations provides a recommended PCB layout in their application note AN-63, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
To ensure reliable start-up and shutdown, it's essential to follow the recommended soft-start and shutdown procedures outlined in the datasheet. This includes using a soft-start circuit to limit the inrush current and a shutdown circuit to ensure the device is fully discharged before turning off the input power.
Operating the INN3378C-H302-TL at high ambient temperatures can reduce its reliability and lifespan. It's essential to derate the device's power output and ensure adequate cooling to prevent overheating. Power Integrations provides thermal derating curves in the datasheet to help designers make informed decisions.
The INN3378C-H302-TL has a reinforced isolation rating of 3000 Vrms, making it suitable for designs that require high isolation voltage. However, it's essential to follow the recommended layout and creepage guidelines to ensure the device meets the required isolation standards.
Power Integrations provides a troubleshooting guide in their application note AN-64, which includes steps to identify and resolve common issues with the INN3378C-H302-TL. This includes checking the input voltage, output voltage, and current, as well as verifying the PCB layout and component values.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
INN3378C-H302-TL Overview

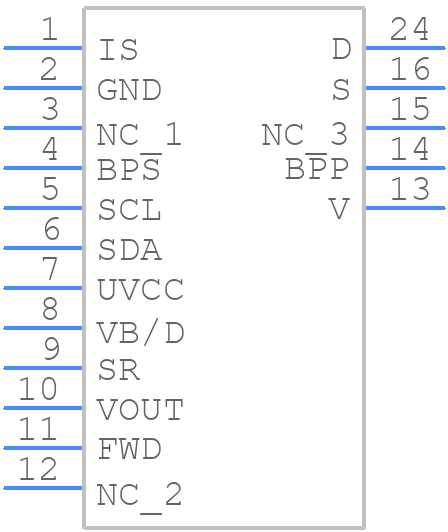

Use the download button to access the INN3378C-H302-TL schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like INN33,
or try a keyword search, such as Switching Regulator or Controllers
