Power Integrations provides a recommended PCB layout in their application note AN-63, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
The input capacitor selection depends on the input voltage, current, and ripple requirements. A general guideline is to choose a capacitor with a voltage rating at least 1.5 times the maximum input voltage, and a capacitance value that ensures the ripple voltage is within the specified limits. Power Integrations provides a capacitor selection guide in their application note AN-44.
The BYPASS pin is a sensitive node, and the maximum allowed voltage is typically limited to 6.5V to prevent damage to the internal circuitry. It's essential to ensure that the voltage on this pin does not exceed this limit to prevent IC damage or malfunction.
Power Integrations provides a troubleshooting guide in their application note AN-55, which covers common issues such as incorrect pin connections, inadequate input voltage, and excessive output current. The guide also provides a step-by-step procedure to identify and resolve the problem.
Yes, the INN3379C-H302-TL is compatible with lead-free soldering processes. Power Integrations ensures that their products meet the requirements of the RoHS (Restriction of Hazardous Substances) directive, and the IC can be safely soldered using lead-free soldering techniques.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
INN3379C-H302-TL Overview

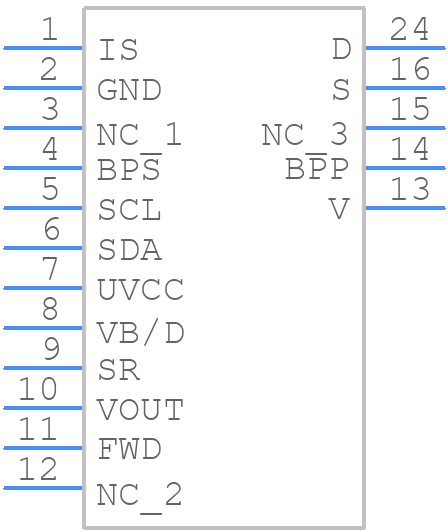

Use the download button to access the INN3379C-H302-TL schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like INN33,
or try a keyword search, such as Switching Regulator or Controllers
