INT035TFT-TS footprint, schematic symbol and 3D model by Displaytech

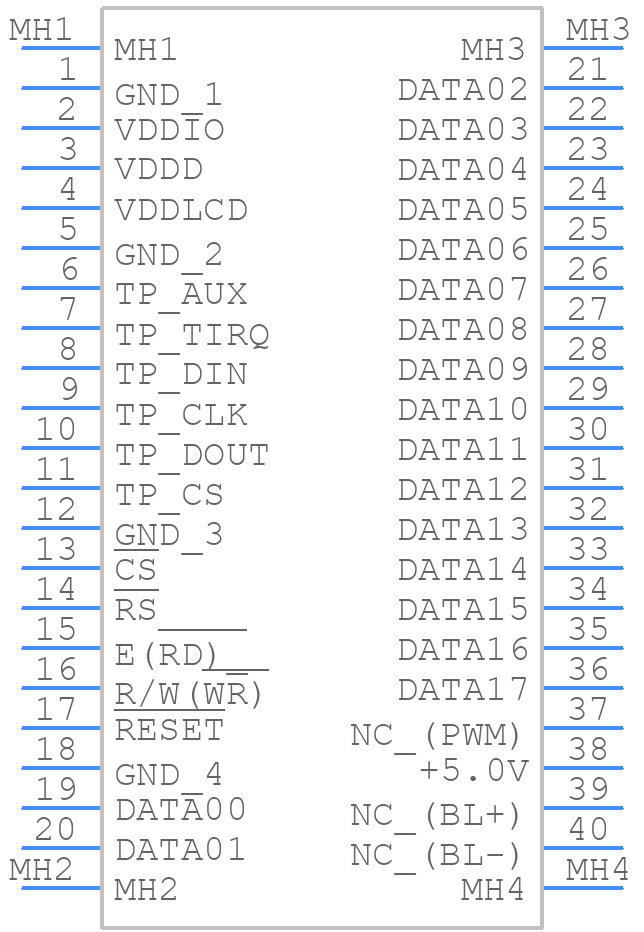

Symbol

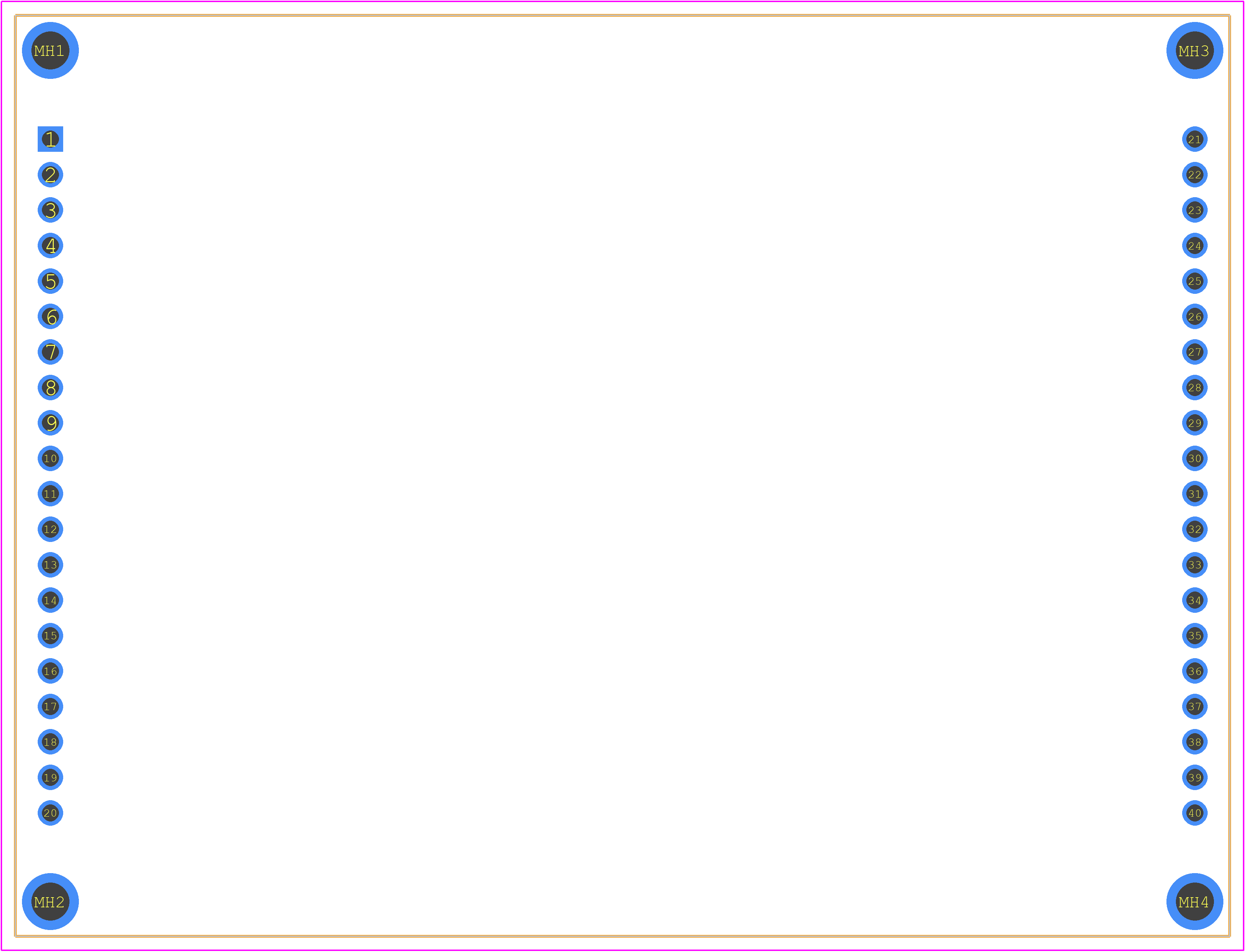

PCB Footprints

3D Models

INT035TFT-TS Details

The recommended operating temperature range for the INT035TFT-TS is -20°C to 70°C, with a storage temperature range of -30°C to 80°C.
The INT035TFT-TS display module uses a 16-bit parallel interface, and it is compatible with MCU/MPU interfaces such as 8080, 6800, and SPI.
The typical power consumption of the INT035TFT-TS is around 220mA at 3.3V, with a maximum power consumption of 300mA.
Yes, the INT035TFT-TS supports various display modes, including Full Color, Monochrome, and Sleep modes.
The response time of the INT035TFT-TS display module is around 10ms (typical) and 20ms (maximum) at 25°C.

Expert Contribution

System Verified

Community Approved

Use the download button to access the INT035TFT-TS schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like INT03, or try a keyword search, such as LCD Displays
