INT070ATFT-TS footprint, schematic symbol and 3D model by Displaytech

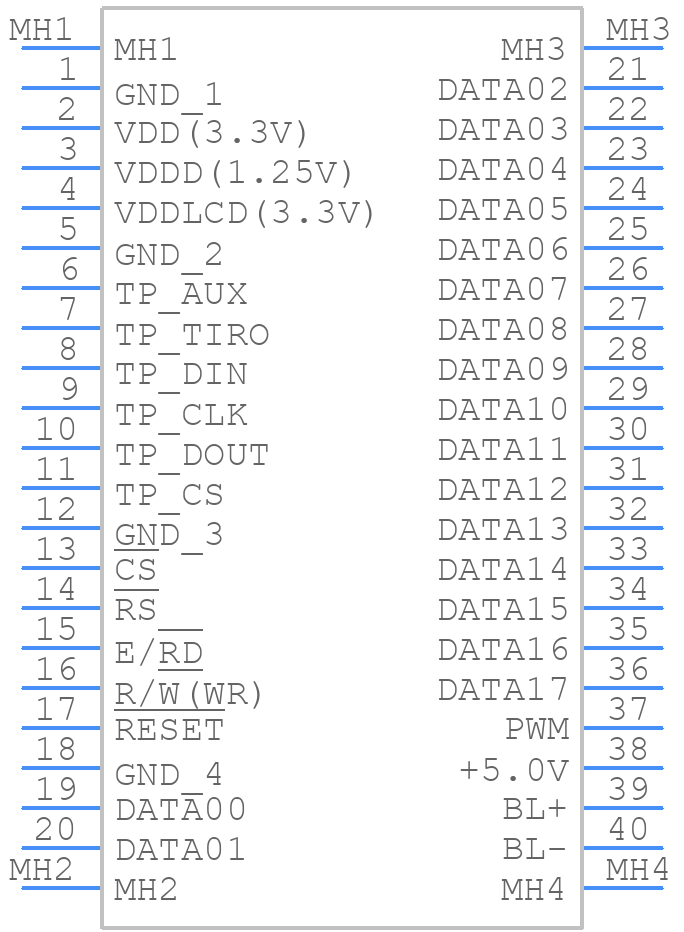

Symbol

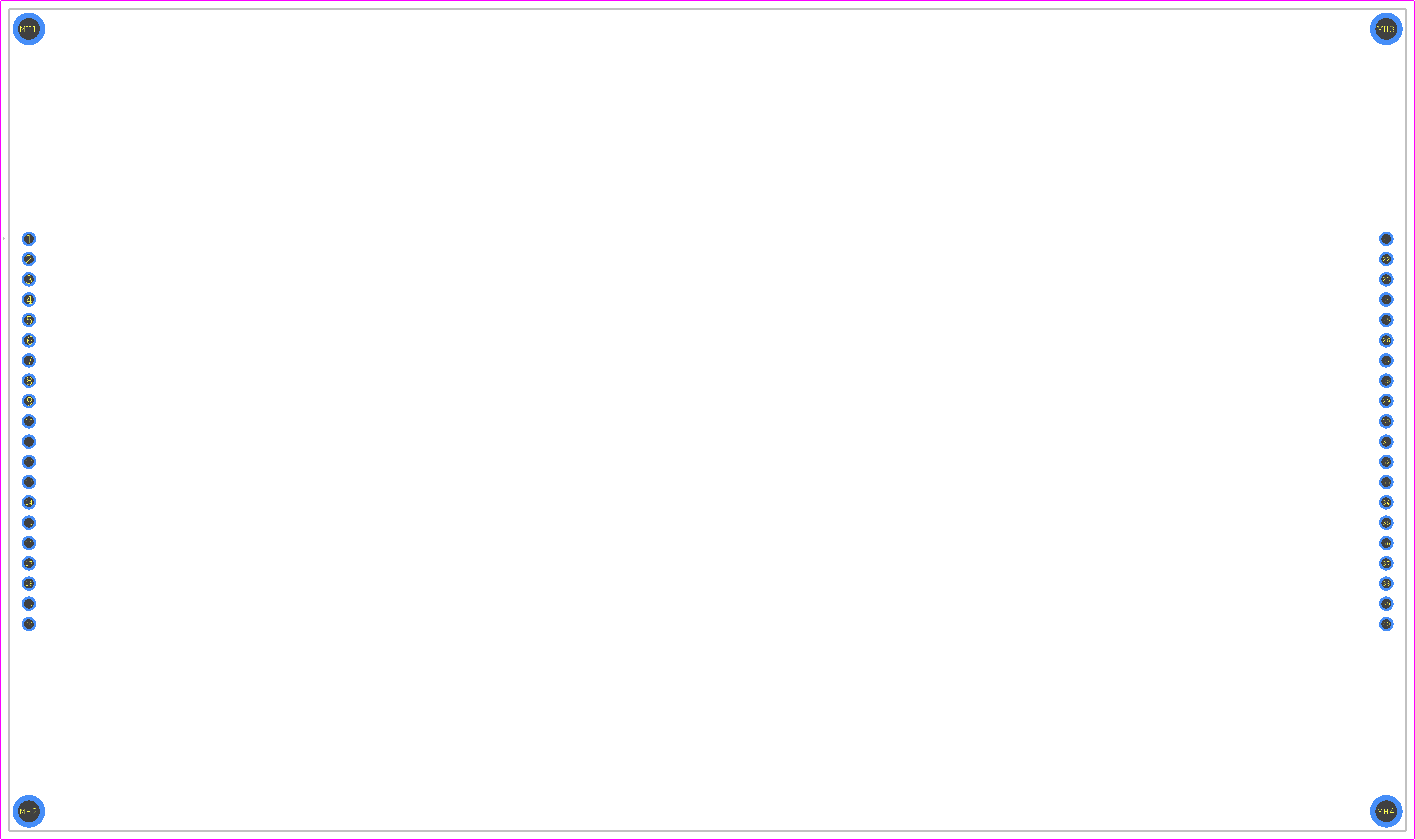

PCB Footprints

3D Models

INT070ATFT-TS Details

The recommended storage temperature range for the INT070ATFT-TS is -20°C to 60°C.
Yes, the INT070ATFT-TS can be used in outdoor applications, but it may require additional protection such as a UV filter or anti-reflective coating to ensure optimal performance.
The typical response time of the INT070ATFT-TS is around 20-30 ms.
The INT070ATFT-TS is compatible with 3.3V logic, but it can also be used with 5V logic with the use of a level shifter or voltage regulator.
Yes, the INT070ATFT-TS can be used in either portrait or landscape orientation, but the display's viewing angle and brightness may vary depending on the orientation.

Expert Contribution

System Verified

Community Approved

Use the download button to access the INT070ATFT-TS schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like INT07, or try a keyword search, such as LCD Displays
