The INT100S can operate from -40°C to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C.
The INT100S requires a bias voltage of 12V to 15V on the VCC pin, and the voltage on the BYPASS pin should be around 5V to 6V to ensure proper operation.
The INT100S is a high-frequency device, so it's essential to follow good layout practices, such as keeping the input and output traces short and separate, and placing the device close to the input capacitors. A 4-layer PCB with a solid ground plane is recommended.
The output voltage ripple of the INT100S can be estimated using the formula: ΔVout = (Iout * ESL) / (Cout * fsw), where ESL is the equivalent series inductance of the output capacitor, Cout is the output capacitance, and fsw is the switching frequency.
The INT100S can deliver up to 1A of output current, but the actual current capability depends on the input voltage, output voltage, and thermal conditions. It's essential to check the thermal derating curves in the datasheet to ensure the device can handle the required output current.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
INT100S Overview

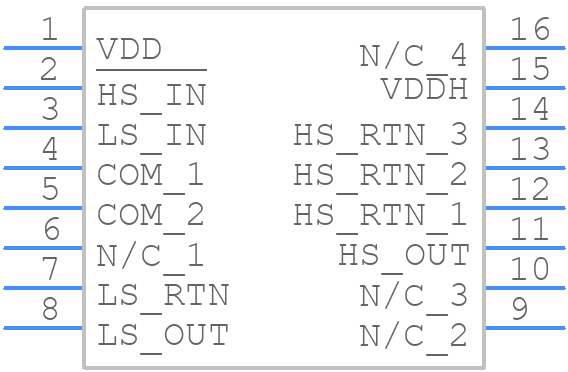

Use the download button to access the INT100S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like INT10,
or try a keyword search, such as MOSFET Drivers
