IP4233CZ6,125 - Nexperia

Description: IP4233CZ6 - Ultra low capacitance ESD protection for Ethernet ports

Download IP4233CZ6,125 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

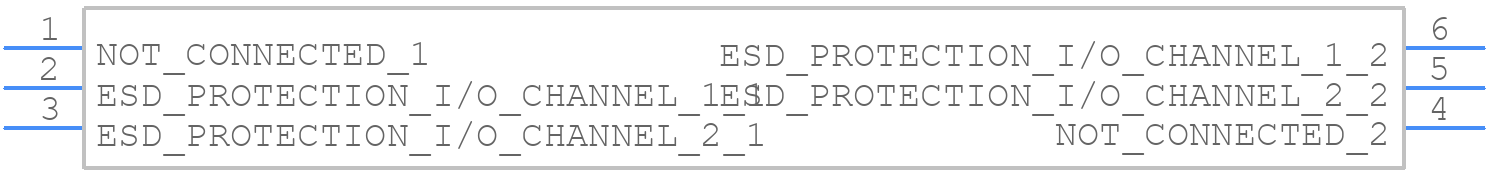

IP4233CZ6,125 - Nexperia - PCB symbol
click to zoom
PCB Footprints
IP4233CZ6,125 - Nexperia PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - SOT363
click to zoom
3D Models
IP4233CZ6,125 - Nexperia - 3D model - SOT23 (6-Pin) - SOT363
click to zoom

IP4233CZ6,125 Details

  • Manufacturer Part Number:

    IP4233CZ6,125

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    SC-88, SOT-363, 6 PIN

  • Pin Count:

    6

  • Manufacturer Package Code:

    SOT363

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Date Of Intro:

    2017-02-01

  • Manufacturer:

    Nexperia

  • YTEOL:

    0

  • Breakdown Voltage-Max:

    9.5 V

  • Breakdown Voltage-Min:

    6 V

  • Breakdown Voltage-Nom:

    7.75 V

  • Configuration:

    2 BANKS, COMMON ANODE, 2 ELEMENTS, 2 CHANNEL

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    4

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity:

    BIDIRECTIONAL

  • Reference Standard:

    IEC-60134; IEC-61000-4-2

  • Rep Pk Reverse Voltage-Max:

    3 V

  • Reverse Current-Max:

    0.1 µA

  • Reverse Test Voltage:

    3 V

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Finish:

    TIN

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30
