IP4292CZ10-TBR,115 - Nexperia

Description: IP4292CZ10-TBR - ESD protection for ultra high-speed interfaces

Download IP4292CZ10-TBR,115 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

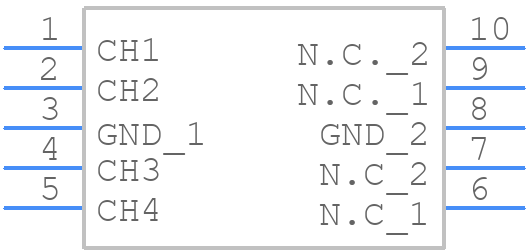

IP4292CZ10-TBR,115 - Nexperia - PCB symbol
click to zoom
PCB Footprints
IP4292CZ10-TBR,115 - Nexperia PCB footprint - Small Outline No-lead - Small Outline No-lead - SOT1176-1_2022
click to zoom
3D Models
IP4292CZ10-TBR,115 - Nexperia - 3D model - Small Outline No-lead - SOT1176-1_2022
click to zoom

IP4292CZ10-TBR,115 Details

  • Manufacturer Part Number:

    IP4292CZ10-TBR,115

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    DFN

  • Package Description:

    2.50 X 1 MM, 0.50 MM HEIGHT, GREEN, LEADLESS, ULTRA THIN, PLASTIC, SOT-1176-1, XSON10, 10 PIN

  • Pin Count:

    10

  • Manufacturer Package Code:

    SOT1176-1

  • Country Of Origin:

    Mainland China, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Nexperia

  • YTEOL:

    3

  • Breakdown Voltage-Min:

    6 V

  • Configuration:

    SINGLE, 4 CHANNEL

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JESD-30 Code:

    R-PDSO-N10

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity:

    UNIDIRECTIONAL

  • Reference Standard:

    IEC-60134; IEC-61000-4-2

  • Reverse Current-Max:

    1 µA

  • Reverse Test Voltage:

    5 V

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Finish:

    NICKEL PALLADIUM GOLD SILVER

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

IP4292CZ10-TBR,115 Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for IP4292CZ10-TBR,115 is a QFN16 package with a 3x3mm body size and 0.5mm pitch. The datasheet provides a recommended land pattern and solder mask design guidelines.
  • The IP4292CZ10-TBR,115 has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and storage. Use an ESD wrist strap or mat, and store the devices in anti-static packaging.
  • The thermal resistance (Rth(j-a)) of IP4292CZ10-TBR,115 is approximately 45°C/W. This value is not explicitly stated in the datasheet, but it can be calculated using the package thermal model or obtained from Nexperia's application notes.
  • Yes, the IP4292CZ10-TBR,115 is AEC-Q100 qualified, which makes it suitable for automotive applications. However, it's essential to ensure that the device meets the specific requirements of your application, including temperature range, voltage, and reliability.
  • To troubleshoot IP4292CZ10-TBR,115 issues, start by checking the power supply voltage, input signals, and output loads. Use an oscilloscope to verify signal integrity and check for any signs of overheating or electrical overstress. Consult Nexperia's application notes and technical support resources for further guidance.
