IP4856CX25/CZ - Nexperia

Description: Translation - Voltage Levels SD 3.0compliant dual voltage level trans

Download IP4856CX25/CZ Model

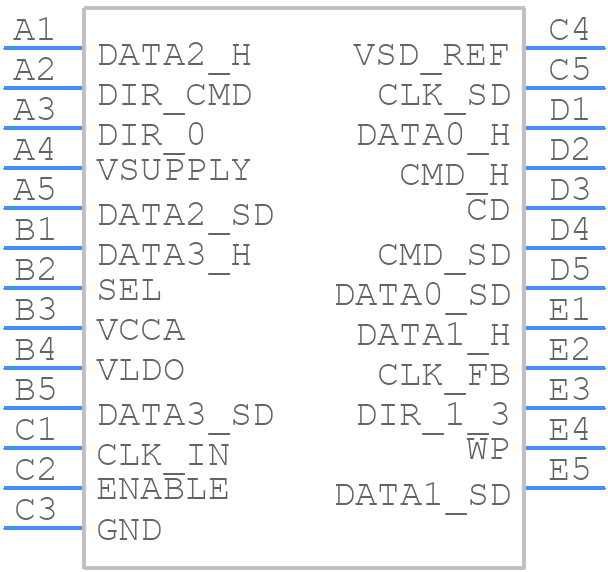

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
IP4856CX25/CZ - Nexperia PCB footprint - BGA - BGA - WLCSP-25
click to zoom
3D Models
IP4856CX25/CZ - Nexperia  - 3D model - BGA - WLCSP-25
click to zoom

IP4856CX25/CZ Details

  • Manufacturer Part Number:

    IP4856CX25/CZ

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    CSP

  • Package Description:

    WLCSP-25

  • Pin Count:

    25

  • Manufacturer Package Code:

    WLCSP25_5X5

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Nexperia

  • YTEOL:

    0

  • Delay-Max:

    7 ns

  • Interface IC Type:

    VOLTAGE LEVEL TRANSLATOR

  • JESD-30 Code:

    S-XBGA-B25

  • Length:

    2.05 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    6

  • Number of Functions:

    1

  • Number of Terminals:

    25

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Latch or Register:

    NONE

  • Output Polarity:

    TRUE

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA25,5X5,16

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.55 mm

  • Supply Current-Max:

    0.1 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Supply Voltage1-Max:

    3.6 V

  • Supply Voltage1-Min:

    2.8 V

  • Supply Voltage1-Nom:

    2.9 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.05 mm

IP4856CX25/CZ Frequently Asked Questions (FAQs)

  • Nexperia recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently.
  • Nexperia recommends following the recommended operating conditions, using a heat sink if necessary, and ensuring good airflow around the device to prevent overheating.
  • The maximum allowed voltage on the input pins is 5.5V, exceeding this may cause damage to the device.
  • Yes, the IP4856CX25/CZ is compatible with 3.3V systems, but ensure that the input voltage does not exceed 3.6V to prevent damage.
  • Nexperia recommends following proper ESD handling procedures, using ESD-protective packaging, and ensuring that the device is not exposed to static electricity during handling and assembly.
