IP5310 footprint, schematic symbol and 3D model by INJOINIC

IP5310 - INJOINIC

Description: Switch buck charger and boost  3A Synchronous switching charger and 5V 3.1A boost converter  Boost converter efficiency up to 93%  Switching charger efficiency up to 92%  Integrated power-path management, charging batteries and charging cellphones at the same time  Charger  Adaptive charging current control, excellent adapter compatibility  Support TYPE-C port with 3A current, and MICRO-B port with 2A current  Support BC1.2 protocol, compatible with PC USB charge  Support 4.20V/4.35V

Download IP5310 Model

Schematic
symbols

PCB
footprints

3D
models

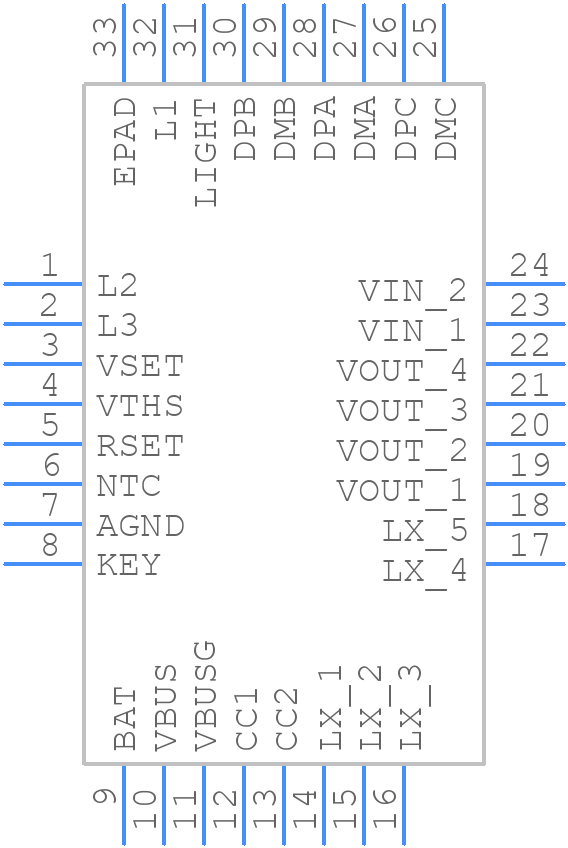

Symbol

click to zoom

PCB Footprints

IP5310 - INJOINIC PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - qfn-32

click to zoom

3D Models

IP5310 - INJOINIC - 3D model - Quad Flat No-Lead - qfn-32

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for IP5310
Part Number IP5310
Manufacturer INJOINIC
Pin Count 33
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - qfn-32
Released Date Sep 4, 2024
Last Modified Date Sep 4, 2024 4:27 AM UTC
Pinout / Pin List Click Here (Member Only)

IP5310 Details

Manufacturer Part Number:
IP5310
Manufacturer:
INJOINIC

Trust Checks

Community Provided

System Verified

Community Approved

IP5310 Overview

Use the download button to access the IP5310 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like IP531, or try a keyword search, such as Data Line Filters
