IP82C54-10Z - Renesas Electronics

Description: The Intersil 82C54 is a high performance CMOS Programmable Interval Timer manufactured using an advanced 2 micron CMOS process. The 82C54 has three independently programmable and functional 16-bit counters, each capable of handling clock input frequencies of up to 8MHz (82C54) or 10MHz (82C54-10) or 12MHz (82C54-12). The High-Speed and industry standard configuration of the 82C54 make it compatible with the Intersil 80C86, 80C88, and 80C286 CMOS microprocessors along with many other industry standard proces

Download IP82C54-10Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

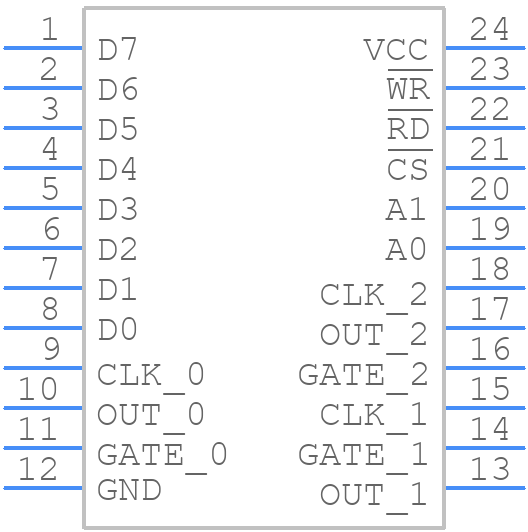

IP82C54-10Z - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

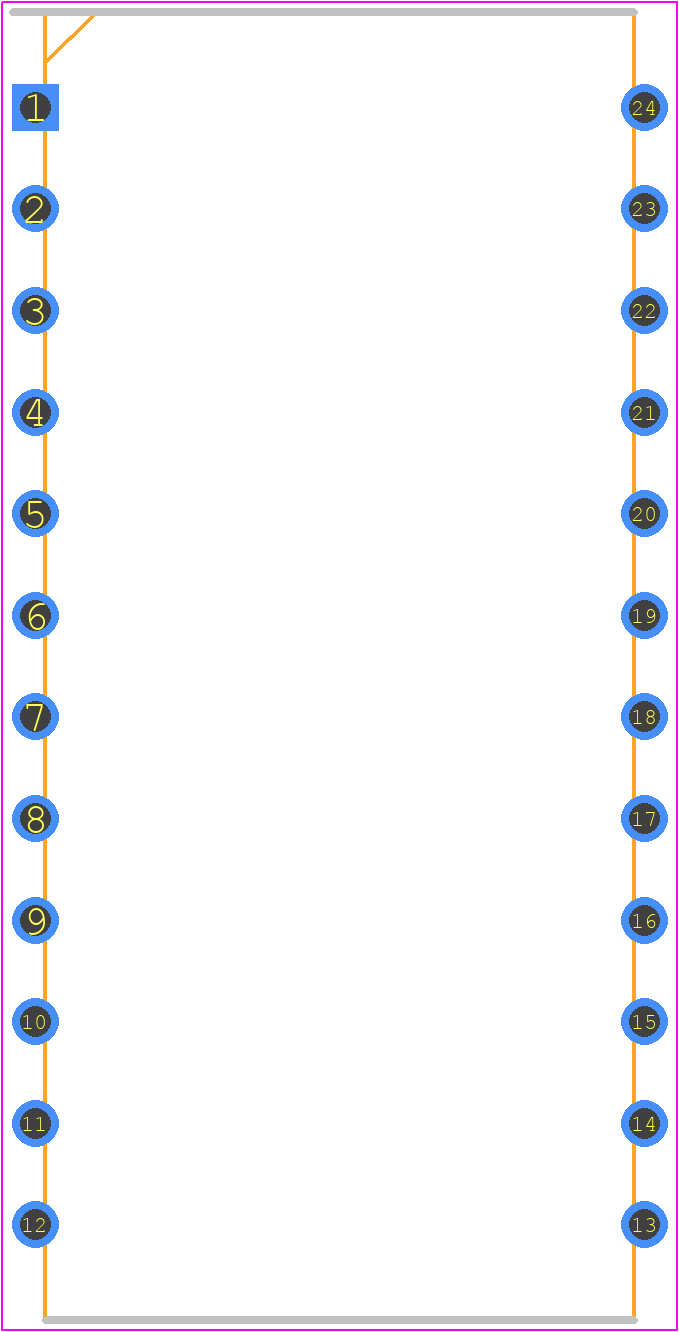

IP82C54-10Z - Renesas Electronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - E24.6-1
click to zoom
3D Models
IP82C54-10Z - Renesas Electronics - 3D model - Dual-In-Line Packages - E24.6-1
click to zoom

IP82C54-10Z Details

  • Manufacturer Part Number:

    IP82C54-10Z

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    PDIP

  • Package Description:

    DIP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    E24.6

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Clock Frequency-Max:

    0.032 MHz

  • External Data Bus Width:

    8

  • Information Access Method:

    PARALLEL, DIRECT ADDRESS

  • JESD-30 Code:

    R-PDIP-T24

  • JESD-609 Code:

    e3

  • Length:

    31 mm

  • Number of Bits:

    16

  • Number of Terminals:

    24

  • Number of Timers:

    3

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    6.35 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    15.24 mm

  • uPs/uCs/Peripheral ICs Type:

    TIMER, PROGRAMMABLE

IP82C54-10Z Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for IP82C54-10Z is 4.5V to 5.5V.
  • The POR sequence for IP82C54-10Z involves applying power to the device, waiting for the internal voltage regulator to stabilize, and then releasing the reset signal. The recommended POR sequence is typically provided in the datasheet or application notes.
  • The maximum clock frequency supported by IP82C54-10Z is 10 MHz.
  • To configure IP82C54-10Z for low-power operation, you can use the power-down mode, idle mode, or stop mode, depending on the specific requirements of your application. Refer to the datasheet for more information on the different power-saving modes.
  • The maximum current consumption of IP82C54-10Z is typically around 15 mA, but this can vary depending on the operating frequency, voltage, and other factors. Refer to the datasheet for more information on the current consumption characteristics.
