IPB240N04S41R0ATMA1 - Infineon

Description: N-Channel 40 V 240A (Tc) 231W (Tc) Surface Mount PG-TO263-7-3

Download IPB240N04S41R0ATMA1 Model

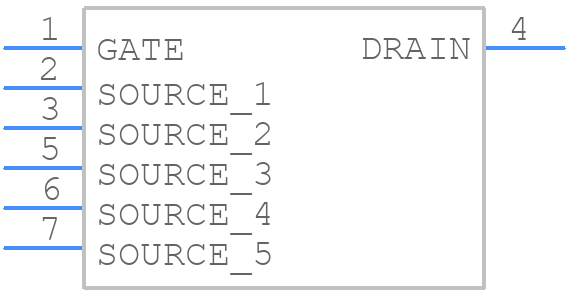

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
IPB240N04S41R0ATMA1 - Infineon PCB footprint - Other - Other - PG-TO263-7-3_2024-1
click to zoom

IPB240N04S41R0ATMA1 Details

  • Manufacturer Part Number:

    IPB240N04S41R0ATMA1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    6

  • Additional Feature:

    ULTRA LOW RESISTANCE

  • Avalanche Energy Rating (Eas):

    750 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    40 V

  • Drain Current-Max (ID):

    240 A

  • Drain-source On Resistance-Max:

    0.001 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PSSO-G6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    6

  • Operating Mode:

    ENHANCEMENT MODE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    960 A

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    SINGLE

  • Transistor Element Material:

    SILICON

IPB240N04S41R0ATMA1 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for IPB240N04S41R0ATMA1 is -55°C to 175°C.
  • Proper cooling can be achieved by using a heat sink with a thermal resistance of less than 10°C/W, and ensuring good airflow around the device.
  • The recommended gate resistor value for IPB240N04S41R0ATMA1 is between 10Ω to 100Ω, depending on the specific application and switching frequency.
  • Yes, IPB240N04S41R0ATMA1 is suitable for high-frequency switching applications up to 100 kHz, but the user should ensure that the device is properly cooled and the gate drive is optimized for the specific application.
  • To protect the MOSFET from overvoltage and overcurrent, use a voltage clamp or a TVS diode to limit the voltage, and a current sense resistor or a current limiter to limit the current.
