IPBS-104-01-T-D-GP footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

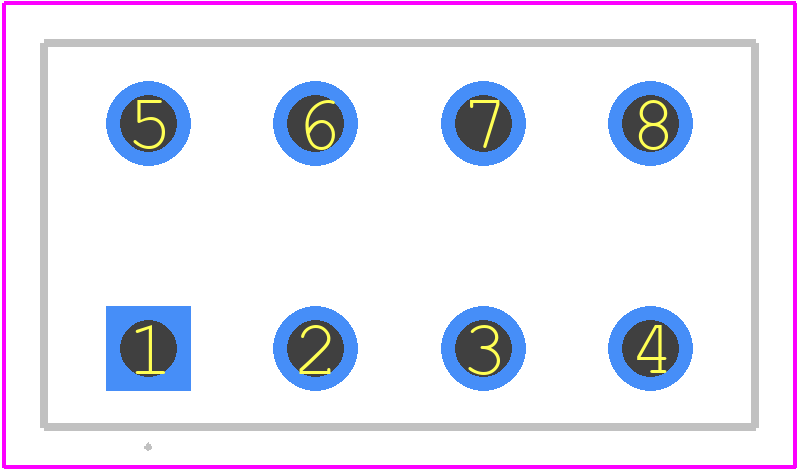

IPBS-104-01-T-D-GP - SAMTEC PCB footprint - Other - Other - IPBS-104-01-T-D-GP-2

click to zoom

3D Models

IPBS-104-01-T-D-GP - SAMTEC - 3D model - Other - IPBS-104-01-T-D-GP-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for IPBS-104-01-T-D-GP
Part Number IPBS-104-01-T-D-GP
Manufacturer SAMTEC
Pin Count 8
Part Category Connector
Package Category Other
Footprint Name Other - IPBS-104-01-T-D-GP-2
Released Date Mar 23, 2024
Last Modified Date Mar 23, 2024 8:56 AM UTC
Pinout / Pin List Click Here (Member Only)

IPBS-104-01-T-D-GP Details

Manufacturer Part Number:
IPBS-104-01-T-D-GP
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Malaysia, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
10 Weeks
Manufacturer:
Samtec Inc
YTEOL:
7.25
Body Breadth:
0.378 inch
Body Depth:
0.48 inch
Body Length:
0.7 inch
Body/Shell Style:
SOCKET
Connector Type:
RECTANGULAR POWER CONNECTOR
Contact Finish Mating:
MATTE TIN OVER NICKEL (50)
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
FEMALE
Contact Material:
PHOSPHOR BRONZE
Contact Style:
SQ PIN-SKT
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
LIQUID CRYSTAL POLYMER
JESD-609 Code:
e3
MIL Conformance:
NO
Mixed Contacts:
NO
Mounting Type:
BOARD
Option:
GENERAL PURPOSE
Rated Current (Signal):
7.6 A
Termination Type:
SOLDER
Total Number of Contacts:
8

IPBS-104-01-T-D-GP Frequently Asked Questions (FAQs)

The recommended torque for the screws on the IPBS-104-01-T-D-GP connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
Yes, the IPBS-104-01-T-D-GP connector is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper screw torque to ensure reliable connections.
The maximum operating temperature for the IPBS-104-01-T-D-GP connector is 125°C (257°F) according to Samtec's datasheet and application notes.
Yes, the IPBS-104-01-T-D-GP connector is RoHS and REACH compliant, meeting the European Union's directives for restricted substances and hazardous materials.
The IPBS-104-01-T-D-GP connector is not designed for use in wet or humid environments. Samtec recommends using a connector with a higher ingress protection rating (IP67 or higher) for such applications.

Trust Checks

Community Provided

System Verified

Community Approved

IPBS-104-01-T-D-GP Overview

Use the download button to access the IPBS-104-01-T-D-GP schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like IPBS-, or try a keyword search, such as Power Connectors
