IPBS-106-01-T-D footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

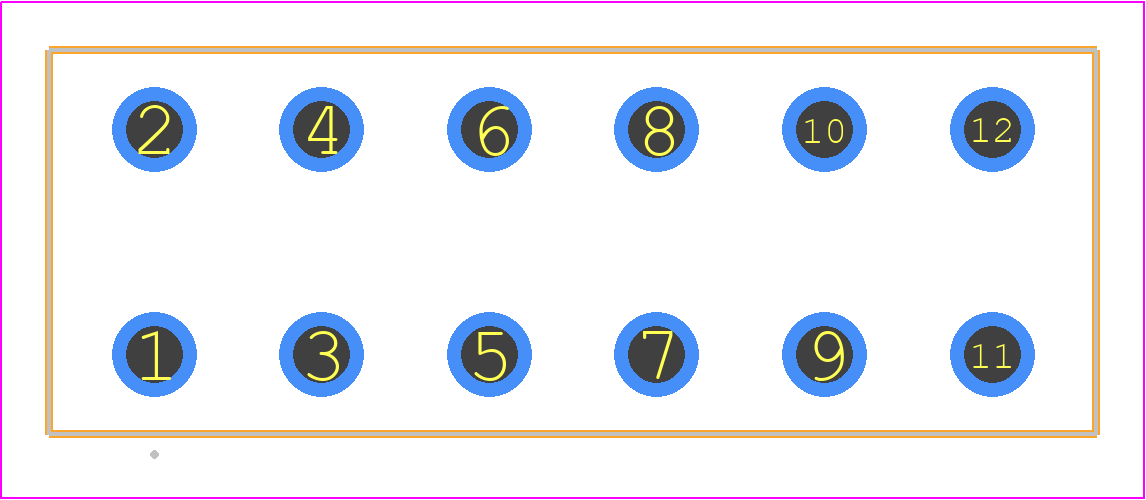

IPBS-106-01-T-D - SAMTEC PCB footprint - Other - Other - IPBS-106-01-T-D

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for IPBS-106-01-T-D
Part Number IPBS-106-01-T-D
Manufacturer SAMTEC
Pin Count 12
Part Category Connector
Package Category Other
Footprint Name Other - IPBS-106-01-T-D
Released Date Jun 27, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

IPBS-106-01-T-D Details

Manufacturer Part Number:
IPBS-106-01-T-D
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Malaysia, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Samtec Inc
YTEOL:
8
Additional Feature:
POWER-MATE, SHROUDED
Body/Shell Style:
SOCKET
Connector Type:
RECTANGULAR POWER CONNECTOR
Contact Finish Mating:
TIN OVER NICKEL (50)
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
FEMALE
Contact Material:
PHOSPHOR BRONZE
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
LIQUID CRYSTAL POLYMER
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Type:
BOARD
Option:
GENERAL PURPOSE
Termination Type:
SOLDER
Total Number of Contacts:
12

IPBS-106-01-T-D Frequently Asked Questions (FAQs)

The recommended torque for the screws on the IPBS-106-01-T-D connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
Yes, the IPBS-106-01-T-D connector is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper screw torque to ensure reliable connections.
The maximum operating temperature for the IPBS-106-01-T-D connector is 125°C (257°F) according to Samtec's datasheet. However, it's recommended to derate the connector's current-carrying capacity at higher temperatures.
Yes, the IPBS-106-01-T-D connector can be used with PCB thicknesses up to 2.36 mm (0.093 in). However, Samtec recommends consulting their application notes for specific guidance on PCB thickness and connector orientation.
The IPBS-106-01-T-D connector has a mating cycle life of 500 cycles minimum according to Samtec's datasheet. This means the connector can withstand at least 500 mating and unmating cycles without significant degradation.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

IPBS-106-01-T-D Overview

Use the download button to access the IPBS-106-01-T-D schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like IPBS-, or try a keyword search, such as Power Connectors
