IPBS-108-01-T-D - SAMTEC

Description: 16 Position Header Connector 0.165" (4.20mm) Through Hole Tin , 400VAC, 565VDC , -55°C ~ 105°C

Download IPBS-108-01-T-D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
IPBS-108-01-T-D - SAMTEC - PCB symbol
click to zoom
PCB Footprints

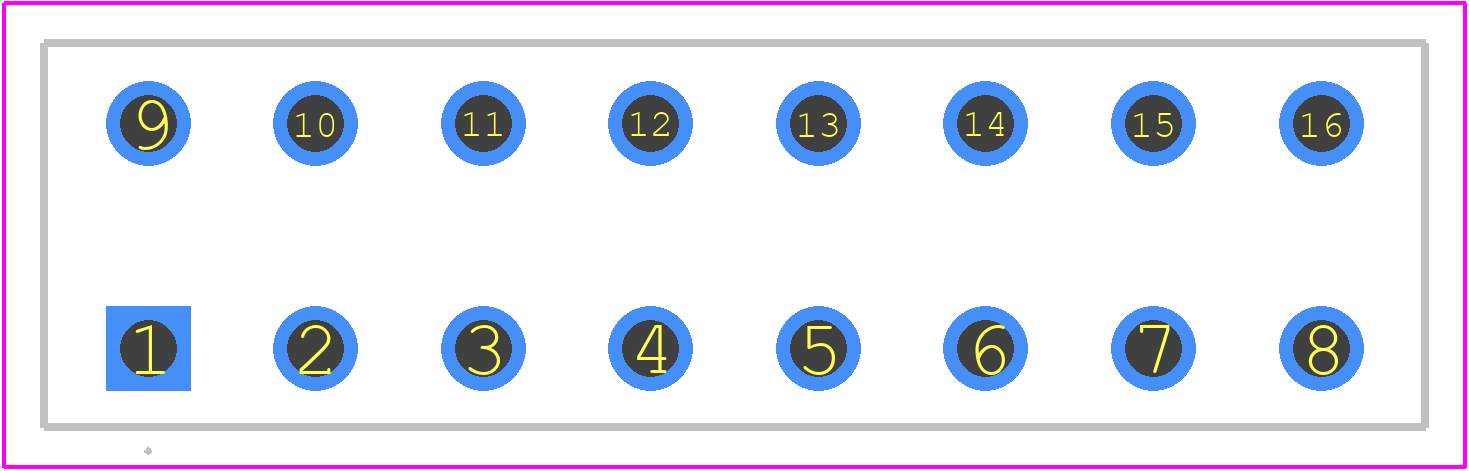

IPBS-108-01-T-D - SAMTEC PCB footprint - Other - Other - IPBS-108-01-T-D-1
click to zoom
3D Models
IPBS-108-01-T-D - SAMTEC - 3D model - Other - IPBS-108-01-T-D-1
click to zoom

IPBS-108-01-T-D Details

  • Manufacturer Part Number:

    IPBS-108-01-T-D

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    2 Weeks, 6 Days

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    7.58

  • Additional Feature:

    POLARIZED, SHROUDED

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    MATTE TIN OVER NICKEL (50)

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    PHOSPHOR BRONZE

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    16

IPBS-108-01-T-D Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the IPBS-108-01-T-D connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
  • Yes, the IPBS-108-01-T-D connector is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper screw torque to ensure reliable connections.
  • The maximum operating temperature for the IPBS-108-01-T-D connector is 125°C (257°F) according to Samtec's datasheet. However, it's recommended to derate the operating temperature based on the specific application and environmental conditions.
  • While the IPBS-108-01-T-D connector is designed for PCB thicknesses up to 1.57 mm, Samtec recommends consulting with their technical support team for custom solutions or modifications to accommodate thicker PCBs.
  • The recommended mating cycle for the IPBS-108-01-T-D connector is 500 cycles according to Samtec's datasheet. However, this may vary depending on the specific application and environmental conditions.
