IPBT-110-H1-T-D-RA footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

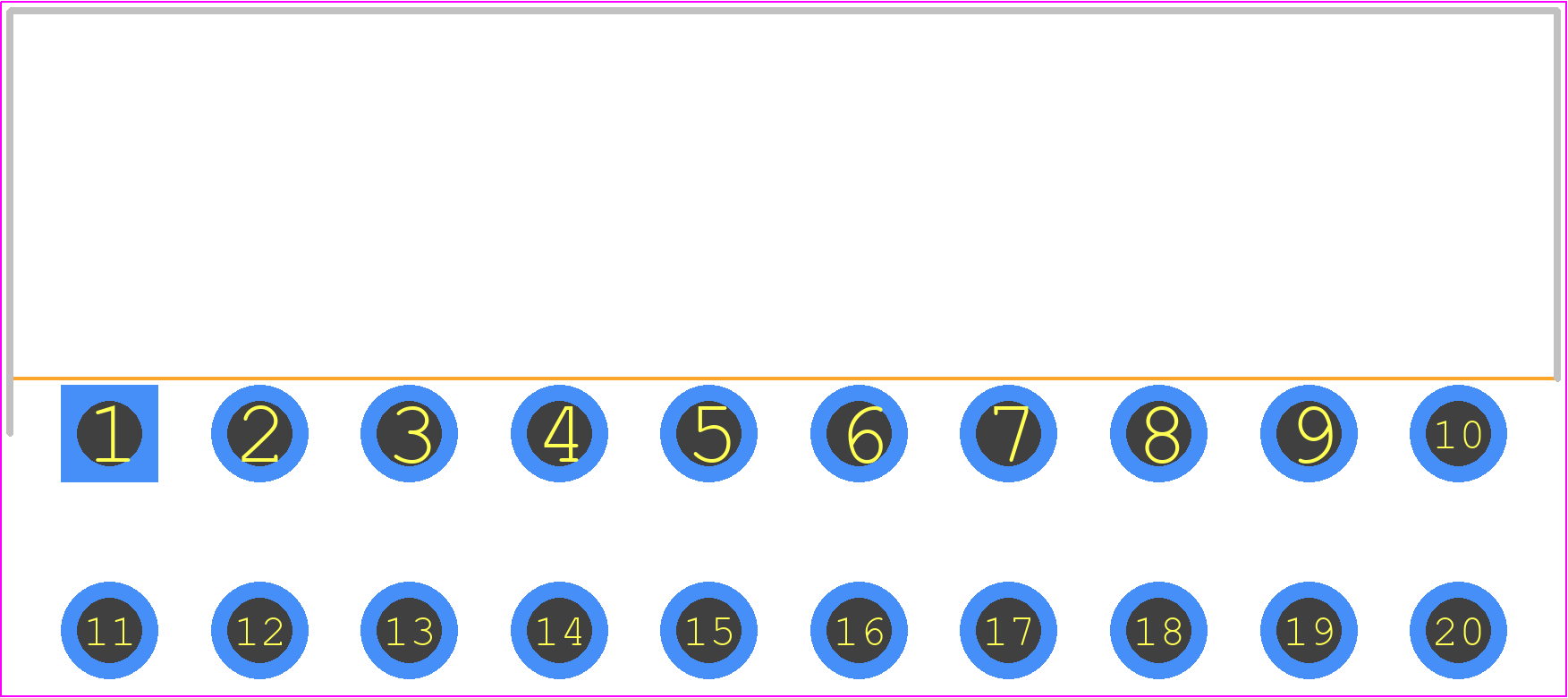

IPBT-110-H1-T-D-RA - SAMTEC PCB footprint - Header, Receptacle - Right Angle PTH Box - Header, Receptacle - Right Angle PTH Box - IPBT-110-H1-T-D-RA

click to zoom

3D Models

IPBT-110-H1-T-D-RA - SAMTEC - 3D model - Header, Receptacle - Right Angle PTH Box - IPBT-110-H1-T-D-RA

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for IPBT-110-H1-T-D-RA
Part Number IPBT-110-H1-T-D-RA
Manufacturer SAMTEC
Pin Count 20
Part Category Connector
Package Category Header, Receptacle - Right Angle PTH Box
Footprint Name Header, Receptacle - Right Angle PTH Box - IPBT-110-H1-T-D-RA
Released Date May 15, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

IPBT-110-H1-T-D-RA Details

Manufacturer Part Number:
IPBT-110-H1-T-D-RA
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Factory Lead Time:
4 Weeks
Manufacturer:
Samtec Inc
YTEOL:
7.45
Additional Feature:
POLARIZED, SHROUDED
Body Breadth:
0.424 inch
Body Length:
1.703 inch
Body/Shell Style:
PLUG
Connector Type:
RECTANGULAR POWER CONNECTOR
Contact Arrangement:
S0P20
Contact Finish Mating:
MATTE TIN OVER NICKEL (50)
Contact Finish Termination:
Matte Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
MALE
Contact Material:
COPPER ALLOY
Contact Style:
SQ PIN-SKT
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Color:
BLACK
Insulator Material:
LIQUID CRYSTAL POLYMER
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of Connectors:
ONE
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
Reference Standard:
CSA, UL
Terminal Length:
0.147 inch
Termination Type:
SOLDER
Total Number of Contacts:
20

IPBT-110-H1-T-D-RA Frequently Asked Questions (FAQs)

The recommended torque for the screws on the IPBT-110-H1-T-D-RA connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
Yes, the IPBT-110-H1-T-D-RA connector is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper screw torque to ensure reliable connections.
The maximum operating temperature for the IPBT-110-H1-T-D-RA connector is 125°C (257°F) according to Samtec's datasheet. However, it's recommended to derate the connector's current-carrying capacity at higher temperatures.
The IPBT-110-H1-T-D-RA connector has a moisture-resistant design, but it's not fully waterproof. Samtec recommends following their guidelines for environmental sealing and using additional protection measures if the connector will be exposed to harsh environmental conditions.
The recommended mating cycle for the IPBT-110-H1-T-D-RA connector is 500-1000 cycles according to Samtec's application notes. However, this may vary depending on the specific application and environmental conditions.

Trust Checks

Community Provided

System Verified

Community Approved

IPBT-110-H1-T-D-RA Overview

Use the download button to access the IPBT-110-H1-T-D-RA schematic symbol, PCB footprint, and 3D model.
