IPD5N25S3-430 - Infineon

Description: MOSFET N-Ch 250V 5A DPAK-2

Download IPD5N25S3-430 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
IPD5N25S3-430 - Infineon - PCB symbol
click to zoom
PCB Footprints

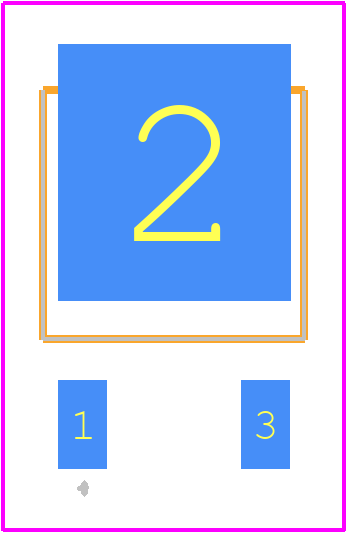

IPD5N25S3-430 - Infineon PCB footprint - Other - Other - IPD5N25S3-430-1
click to zoom

IPD5N25S3-430 Details

  • Manufacturer Part Number:

    IPD5N25S3-430

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TO-252-3-313, 3/2 PIN

  • Country Of Origin:

    Germany, Malaysia

  • ECCN Code:

    EAR99

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    5

  • Avalanche Energy Rating (Eas):

    13 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    250 V

  • Drain Current-Max (ID):

    5 A

  • Drain-source On Resistance-Max:

    0.43 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JEDEC-95 Code:

    TO-252

  • JESD-30 Code:

    R-PSSO-G2

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    2

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    20 A

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    SINGLE

  • Transistor Element Material:

    SILICON

IPD5N25S3-430 Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for IPD5N25S3-430 is a 5-pin SOT-223 package with a minimum pad size of 1.5mm x 1.5mm and a thermal pad size of 2.5mm x 2.5mm.
  • To ensure reliable operation of IPD5N25S3-430 in high-temperature environments, it is recommended to follow proper thermal management practices, such as providing adequate heat sinking and ensuring good airflow around the device.
  • The maximum allowed voltage transient for IPD5N25S3-430 is 40V, as specified in the datasheet. Exceeding this limit may damage the device.
  • Yes, IPD5N25S3-430 is AEC-Q101 qualified, making it suitable for use in automotive applications. However, it is essential to follow proper design and testing procedures to ensure compliance with automotive industry standards.
  • To protect IPD5N25S3-430 from electrostatic discharge (ESD), it is recommended to follow proper ESD handling procedures, such as using ESD-safe workstations, wearing ESD-protective clothing, and using ESD-protective packaging.
