IPD5N25S3430ATMA1 - Infineon

Description: INFINEON - IPD5N25S3430ATMA1 - Power MOSFET, N Channel, 250 V, 5 A, 0.37 ohm, TO-252 (DPAK), Surface Mount

Download IPD5N25S3430ATMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

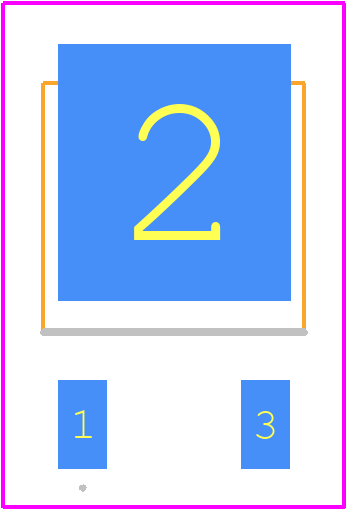

PCB Footprints
IPD5N25S3430ATMA1 - Infineon PCB footprint - Other - Other - PG-TO252-3 _2022
click to zoom
3D Models
IPD5N25S3430ATMA1 - Infineon  - 3D model - Other - PG-TO252-3 _2022
click to zoom

IPD5N25S3430ATMA1 Details

  • Manufacturer Part Number:

    IPD5N25S3430ATMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TO252-3-313, 3/2 PIN

  • Country Of Origin:

    Germany, Malaysia

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    6

  • Avalanche Energy Rating (Eas):

    13 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    250 V

  • Drain Current-Max (ID):

    5 A

  • Drain-source On Resistance-Max:

    0.43 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JEDEC-95 Code:

    TO-252

  • JESD-30 Code:

    R-PSSO-G2

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    2

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    20 A

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    SINGLE

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

IPD5N25S3430ATMA1 Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for IPD5N25S3430ATMA1 is a 5-pin SOT223 package with a minimum pad size of 1.5mm x 1.5mm and a thermal pad size of 2.5mm x 2.5mm.
  • To ensure reliability in high-temperature applications, it is recommended to follow the derating guidelines provided in the datasheet, and to consider using a heat sink or thermal interface material to reduce the junction temperature.
  • The maximum allowed voltage for IPD5N25S3430ATMA1 is 30V, as specified in the datasheet. Exceeding this voltage may damage the device.
  • To protect IPD5N25S3430ATMA1 from ESD, it is recommended to follow proper handling and storage procedures, such as using anti-static packaging and wrist straps, and to ensure that the device is properly grounded during assembly and testing.
  • The typical turn-on and turn-off time for IPD5N25S3430ATMA1 is around 10-20ns, depending on the specific application and operating conditions.
