IPG20N04S4L-11 - Infineon

Description: Infineon IPG20N04S4L-11 Dual N-channel MOSFET Transistor, 20 A, 40 V, 8-Pin TDSON

Download IPG20N04S4L-11 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

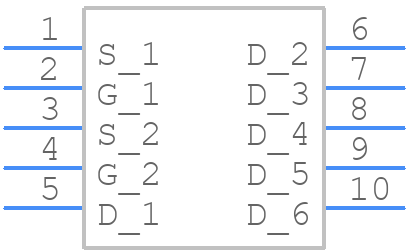

Symbol
IPG20N04S4L-11 - Infineon - PCB symbol
click to zoom
PCB Footprints
IPG20N04S4L-11 - Infineon PCB footprint - Other - Other - PG-TDSON-8-4 _1
click to zoom
3D Models
IPG20N04S4L-11 - Infineon - 3D model - Other - PG-TDSON-8-4 _1
click to zoom

IPG20N04S4L-11 Details

  • Manufacturer Part Number:

    IPG20N04S4L-11

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Pin Count:

    8

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    3

  • Additional Feature:

    LOGIC LEVEL COMPATIBLE

  • Avalanche Energy Rating (Eas):

    80 mJ

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    40 V

  • Drain Current-Max (ID):

    20 A

  • Drain-source On Resistance-Max:

    0.0116 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PDSO-F8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    80 A

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Transistor Element Material:

    SILICON

IPG20N04S4L-11 Frequently Asked Questions (FAQs)

  • The maximum operating temperature of the IPG20N04S4L-11 is 175°C, as specified in the datasheet.
  • To ensure proper cooling, a heat sink with a thermal resistance of less than 10 K/W is recommended. Additionally, the device should be mounted on a PCB with a thermal pad and thermal vias to dissipate heat efficiently.
  • The maximum current rating of the IPG20N04S4L-11 is 20 A, as specified in the datasheet. However, this rating is dependent on the device's operating temperature and the PCB's thermal design.
  • To protect the IPG20N04S4L-11 from overvoltage and overcurrent, a voltage clamp or a transient voltage suppressor (TVS) can be used. Additionally, a current sense resistor and a fuse can be used to detect and respond to overcurrent conditions.
  • The recommended gate drive voltage for the IPG20N04S4L-11 is between 10 V and 15 V, as specified in the datasheet. A higher gate drive voltage can improve the device's switching performance, but may also increase power consumption.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IPG20N04S4L-11 Overview

Use the download button to access the IPG20N04S4L-11 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IPG20, or try a keyword search, such as Power Field-Effect Transistors
