IPL1-102-01-STL-S-RA-K footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

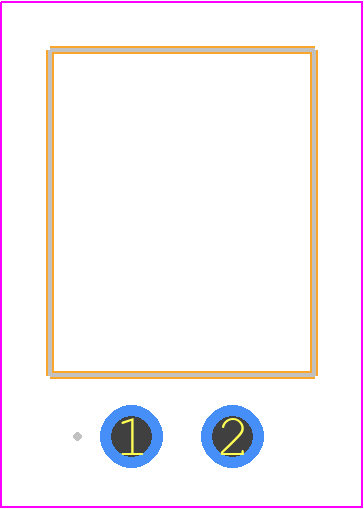

IPL1-102-01-STL-S-RA-K - SAMTEC PCB footprint - Other - Other - IPL1-102-01-YYY-S-RA-K

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for IPL1-102-01-STL-S-RA-K
Part Number IPL1-102-01-STL-S-RA-K
Manufacturer SAMTEC
Pin Count 2
Part Category Connector
Package Category Other
Footprint Name Other - IPL1-102-01-YYY-S-RA-K
Released Date Jun 27, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

IPL1-102-01-STL-S-RA-K Details

Manufacturer Part Number:
IPL1-102-01-STL-S-RA-K
Pbfree Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Factory Lead Time:
2 Weeks, 1 Day
Manufacturer:
Samtec Inc
YTEOL:
6
Body Breadth:
0.24 inch
Body Depth:
0.32 inch
Body Length:
0.2 inch
Connector Type:
RECTANGULAR POWER CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
Tin/Lead (Sn/Pb)
Contact Gender:
MALE
Contact Material:
PHOSPHOR BRONZE
Contact Style:
SQ PIN-SKT
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
LIQUID CRYSTAL POLYMER
JESD-609 Code:
e0
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number of Rows Loaded:
1
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
Reference Standard:
UL
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER
Total Number of Contacts:
2
UL Flammability Code:
94V-0

IPL1-102-01-STL-S-RA-K Frequently Asked Questions (FAQs)

The recommended torque for the screw locks on IPL1-102-01-STL-S-RA-K is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
Yes, the IPL1-102-01-STL-S-RA-K is designed to withstand high-vibration environments. Samtec's ruggedized screw-lock design and stainless steel construction provide added reliability in harsh environments.
The IPL1-102-01-STL-S-RA-K has a mating cycle life of 500 cycles minimum, according to Samtec's specifications. This means the connector can withstand at least 500 mating and unmating cycles without significant degradation.
The IPL1-102-01-STL-S-RA-K has an operating temperature range of -55°C to +125°C, making it suitable for use in high-temperature environments. However, it's essential to consider the specific application and potential thermal stresses.
The IPL1-102-01-STL-S-RA-K is designed for use with PCBs of 1.57 mm (0.062 in) thickness. However, Samtec offers variations of this connector that can accommodate different PCB thicknesses. Consult Samtec's documentation or contact their support team for more information.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

IPL1-102-01-STL-S-RA-K Overview

Use the download button to access the IPL1-102-01-STL-S-RA-K schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like IPL1-, or try a keyword search, such as Power Connectors
