IPL1-105-01-S-D footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

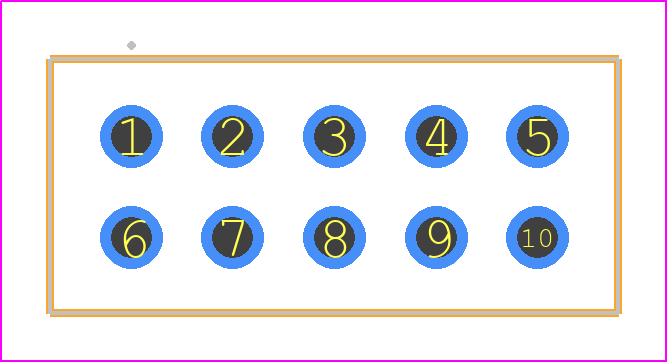

IPL1-105-01-S-D - SAMTEC PCB footprint - Other - Other - IPL1-105-01-YYY-D

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for IPL1-105-01-S-D
Part Number IPL1-105-01-S-D
Manufacturer SAMTEC
Pin Count 10
Part Category Connector
Package Category Other
Footprint Name Other - IPL1-105-01-YYY-D
Released Date Jun 27, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

IPL1-105-01-S-D Details

Manufacturer Part Number:
IPL1-105-01-S-D
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
Samtec Inc
YTEOL:
0
Additional Feature:
RATED CURRENT (POWER): 4.8A
Body Breadth:
0.25 inch
Body Depth:
0.32 inch
Body Length:
0.56 inch
Connector Type:
RECTANGULAR POWER CONNECTOR
Contact Gender:
MALE
Contact Style:
SQ PIN-SKT
Empty Shell:
NO
Filter Feature:
NO
Insulator Material:
LIQUID CRYSTAL POLYMER
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Type:
BOARD
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
Reference Standard:
UL
Termination Type:
SOLDER
Total Number of Contacts:
10
UL Flammability Code:
94V-0

IPL1-105-01-S-D Frequently Asked Questions (FAQs)

The recommended torque for the screws on the IPL1-105-01-S-D connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
Yes, the IPL1-105-01-S-D connector is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper screw torque to ensure reliable connections.
The maximum operating temperature for the IPL1-105-01-S-D connector is 125°C (257°F) according to Samtec's datasheet. However, it's recommended to derate the connector's current-carrying capacity at higher temperatures.
The IPL1-105-01-S-D connector is not designed for use in wet or humid environments. Samtec recommends using their sealed or waterproof connectors, such as the IP67-rated IPL1-105-01-S-D-TH, for applications that require moisture protection.
The mating cycle life of the IPL1-105-01-S-D connector is 500 cycles minimum according to Samtec's datasheet. However, this can vary depending on the application and environmental conditions.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

IPL1-105-01-S-D Overview

Use the download button to access the IPL1-105-01-S-D schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like IPL1-, or try a keyword search, such as Power Connectors

Parts related to IPL1-105-01-S-D

Showing 0 results

Image	Part Number	Model
	IPL1-105-01-L-D Samtec Inc Rectangular Power Connector, 10 Contact(s), Male, Solder Terminal
	IPL1-105-01-LM-D Samtec Inc Rectangular Power Connector, 10 Contact(s), Male, Solder Terminal
For a full list of alternate parts for IPL1-105-01-S-D, check out Findchips.com
