IPL1-105-01-STL-D-K footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

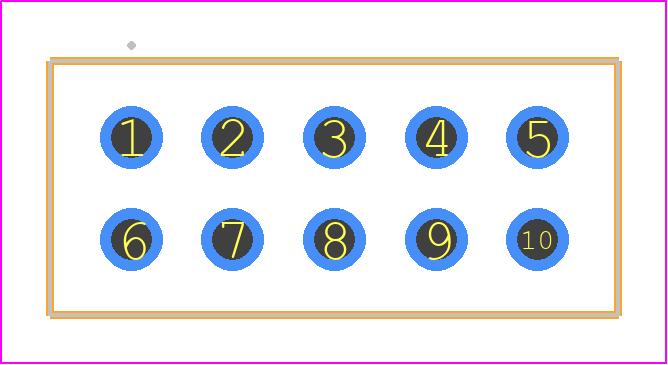

IPL1-105-01-STL-D-K - SAMTEC PCB footprint - Other - Other - IPL1-105-01-YYY-D-K

click to zoom

3D Models

IPL1-105-01-STL-D-K - SAMTEC - 3D model - Other - IPL1-105-01-YYY-D-K

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for IPL1-105-01-STL-D-K
Part Number IPL1-105-01-STL-D-K
Manufacturer SAMTEC
Pin Count 10
Part Category Connector
Package Category Other
Footprint Name Other - IPL1-105-01-YYY-D-K
Released Date Jun 27, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

IPL1-105-01-STL-D-K Details

Manufacturer Part Number:
IPL1-105-01-STL-D-K
Part Life Cycle Code:
Active
Country Of Origin:
Malaysia, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
2 Weeks, 6 Days
Manufacturer:
Samtec Inc
YTEOL:
6
Additional Feature:
RATED CURRENT (POWER): 4.8A
Body Breadth:
0.25 inch
Body Depth:
0.32 inch
Body Length:
0.56 inch
Connector Type:
RECTANGULAR POWER CONNECTOR
Contact Gender:
MALE
Contact Style:
SQ PIN-SKT
Empty Shell:
NO
Filter Feature:
NO
Insulator Material:
LIQUID CRYSTAL POLYMER
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Type:
BOARD
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
Reference Standard:
UL
Termination Type:
SOLDER
Total Number of Contacts:
10
UL Flammability Code:
94V-0

IPL1-105-01-STL-D-K Frequently Asked Questions (FAQs)

The recommended torque for the screw locks is 1.5-2.5 in-lbs (0.17-0.28 Nm) to ensure secure mating and prevent damage to the connector.
Yes, IPL1-105-01-STL-D-K is designed to withstand high-vibration environments. The screw-lock mechanism and rugged construction ensure reliable connections in demanding applications.
Yes, IPL1-105-01-STL-D-K is designed for automated assembly and can be easily integrated into pick-and-place machines and other automated assembly systems.
The operating temperature range for IPL1-105-01-STL-D-K is -55°C to +125°C, making it suitable for a wide range of applications, including industrial, automotive, and aerospace.
Yes, IPL1-105-01-STL-D-K is designed to withstand harsh environments, including high humidity and exposure to chemicals. However, it's essential to follow proper cleaning and maintenance procedures to ensure reliable operation.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

IPL1-105-01-STL-D-K Overview

Use the download button to access the IPL1-105-01-STL-D-K schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like IPL1-, or try a keyword search, such as Power Connectors
