IPL1-106-01-STL-D-K - SAMTEC

Description: Connector Header Through Hole 12 position 0.100" (2.54mm)

Download IPL1-106-01-STL-D-K Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
IPL1-106-01-STL-D-K - SAMTEC - PCB symbol
click to zoom
PCB Footprints

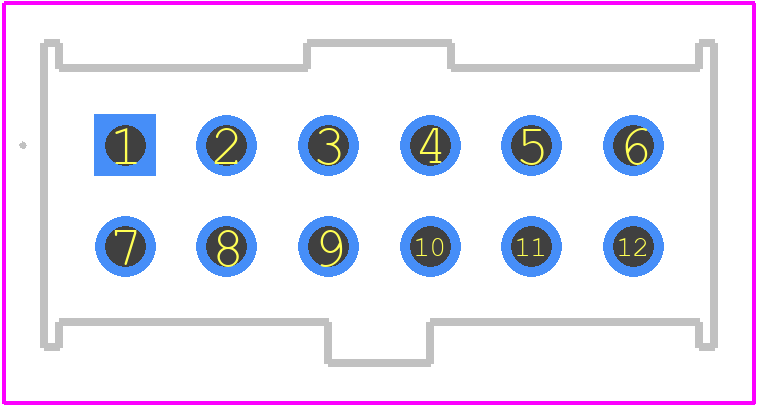

IPL1-106-01-STL-D-K - SAMTEC PCB footprint - Other - Other - IPL1-106-01-STL-D-K-3
click to zoom
3D Models
IPL1-106-01-STL-D-K - SAMTEC - 3D model - Other - IPL1-106-01-STL-D-K-3
click to zoom

IPL1-106-01-STL-D-K Details

  • Manufacturer Part Number:

    IPL1-106-01-STL-D-K

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    USA, Vietnam

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    2 Weeks, 6 Days

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    6

  • Additional Feature:

    RATED CURRENT (POWER): 4.8A

  • Body Breadth:

    0.25 inch

  • Body Depth:

    0.32 inch

  • Body Length:

    0.66 inch

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Gender:

    MALE

  • Contact Style:

    SQ PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    UL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    12

  • UL Flammability Code:

    94V-0

IPL1-106-01-STL-D-K Frequently Asked Questions (FAQs)

  • The recommended mating sequence for IPL1-106-01-STL-D-K is to mate the contacts first, followed by the housing. This ensures proper alignment and prevents damage to the contacts.
  • Yes, the IPL1-106-01-STL-D-K is designed to withstand high-vibration environments. Samtec's STL series connectors are tested to meet the requirements of IEC 61373, which includes vibration testing.
  • The maximum operating temperature for IPL1-106-01-STL-D-K is 125°C. However, it's recommended to derate the current carrying capacity of the connector at higher temperatures to ensure reliable operation.
  • The IPL1-106-01-STL-D-K has a standard mating height of 1mm. While it's possible to use it with a different mating height, it's not recommended as it may affect the reliability and performance of the connection. Consult with Samtec's application engineers for custom solutions.
  • The typical lead time for IPL1-106-01-STL-D-K varies depending on the quantity and availability. However, Samtec typically quotes a lead time of 6-8 weeks for standard products. Expedited options may be available for an additional fee.
