IPL1-110-01-L-S-RA-K footprint, schematic symbol and 3D model by SAMTEC

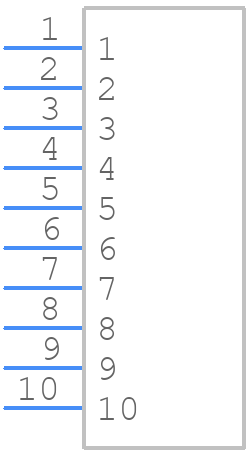

Symbol

click to zoom

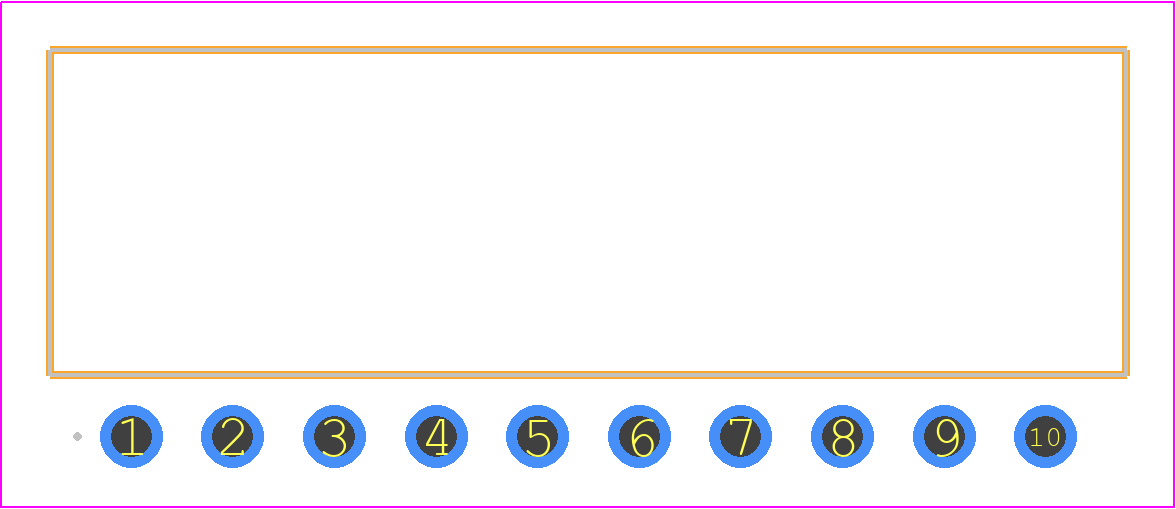

PCB Footprints

IPL1-110-01-L-S-RA-K - SAMTEC PCB footprint - Other - Other - IPL1-110-01-YYY-S-RA-K

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for IPL1-110-01-L-S-RA-K
Part Number IPL1-110-01-L-S-RA-K
Manufacturer SAMTEC
Pin Count 10
Part Category Connector
Package Category Other
Footprint Name Other - IPL1-110-01-YYY-S-RA-K
Released Date Jun 27, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

IPL1-110-01-L-S-RA-K Details

Manufacturer Part Number:
IPL1-110-01-L-S-RA-K
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
Country Of Origin:
Vietnam
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
1 Week
Manufacturer:
Samtec Inc
YTEOL:
8
Additional Feature:
POLARIZED; SHROUDED
Connector Type:
RECTANGULAR POWER CONNECTOR
Contact Arrangement:
S0P10
Contact Finish Mating:
GOLD (10) OVER NICKEL (50)
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
MALE
Contact Material:
PHOSPHOR BRONZE
Contact Style:
SQ PIN-SKT
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Color:
NATURAL
Insulator Material:
LIQUID CRYSTAL POLYMER
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of Connectors:
ONE
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
Plating Thickness:
10u inch
Reference Standard:
UL
Termination Type:
SOLDER
Total Number of Contacts:
10

IPL1-110-01-L-S-RA-K Frequently Asked Questions (FAQs)

The recommended torque for the screw locks is 1.5-2.5 in-lbs (0.17-0.28 Nm) as per Samtec's application notes.
Yes, IPL1-110-01-L-S-RA-K is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper screw torque to ensure reliable connections.
The maximum operating temperature for IPL1-110-01-L-S-RA-K is 125°C (257°F) as per Samtec's datasheet. However, it's recommended to derate the operating temperature based on the specific application and environmental conditions.
Yes, IPL1-110-01-L-S-RA-K is compatible with lead-free soldering processes. Samtec recommends following their guidelines for lead-free soldering and ensuring proper soldering techniques to ensure reliable connections.
Samtec provides recommended PCB layout and spacing guidelines in their datasheet and application notes. It's essential to follow these guidelines to ensure proper mating and reliable connections.
