IPL1-110-01-STL-D-K footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

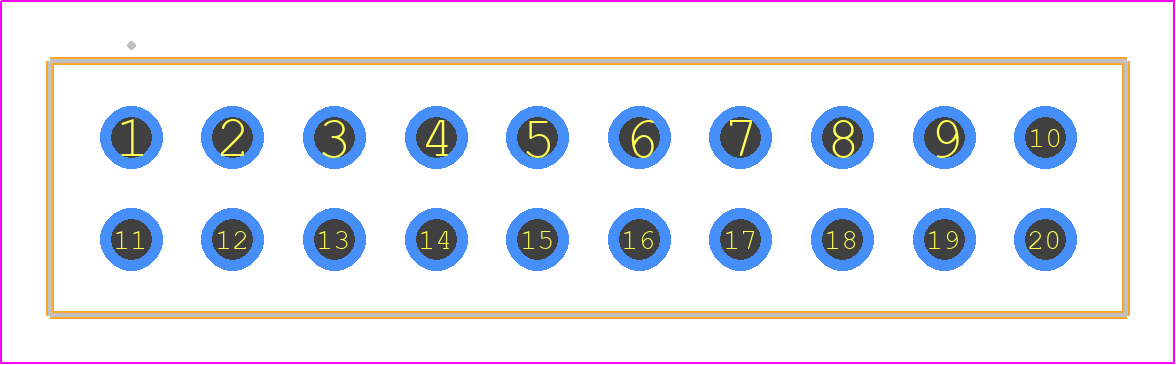

PCB Footprints

IPL1-110-01-STL-D-K - SAMTEC PCB footprint - Other - Other - IPL1-110-01-YYY-D-K

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for IPL1-110-01-STL-D-K
Part Number IPL1-110-01-STL-D-K
Manufacturer SAMTEC
Pin Count 20
Part Category Connector
Package Category Other
Footprint Name Other - IPL1-110-01-YYY-D-K
Released Date Jun 27, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

IPL1-110-01-STL-D-K Details

Manufacturer Part Number:
IPL1-110-01-STL-D-K
Part Life Cycle Code:
Active
Country Of Origin:
USA, Vietnam
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Samtec Inc
YTEOL:
6
Additional Feature:
RATED CURRENT (POWER): 4.8A
Body Breadth:
0.25 inch
Body Depth:
0.32 inch
Body Length:
1.06 inch
Connector Type:
RECTANGULAR POWER CONNECTOR
Contact Gender:
MALE
Contact Style:
SQ PIN-SKT
Empty Shell:
NO
Filter Feature:
NO
Insulator Material:
LIQUID CRYSTAL POLYMER
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Type:
BOARD
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
Reference Standard:
UL
Termination Type:
SOLDER
Total Number of Contacts:
20
UL Flammability Code:
94V-0

IPL1-110-01-STL-D-K Frequently Asked Questions (FAQs)

The recommended mating sequence for the IPL1-110-01-STL-D-K connector is to mate the contacts first, followed by the housing. This ensures proper alignment and prevents damage to the contacts.
Yes, the IPL1-110-01-STL-D-K connector is designed to withstand high-vibration environments. It has a ruggedized design and is suitable for use in applications with high shock and vibration.
The maximum operating temperature for the IPL1-110-01-STL-D-K connector is 125°C (257°F). It is designed to operate within a temperature range of -55°C to 125°C (-69°F to 257°F).
Yes, the IPL1-110-01-STL-D-K connector is compatible with lead-free soldering processes. It is designed to meet the requirements of RoHS and WEEE directives.
The typical contact resistance for the IPL1-110-01-STL-D-K connector is 10 milliohms or less. This ensures reliable signal transmission and low power loss.
