IPL1-112-01-L-S-K footprint, schematic symbol and 3D model by SAMTEC

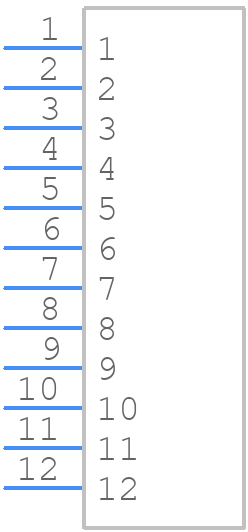

Symbol

click to zoom

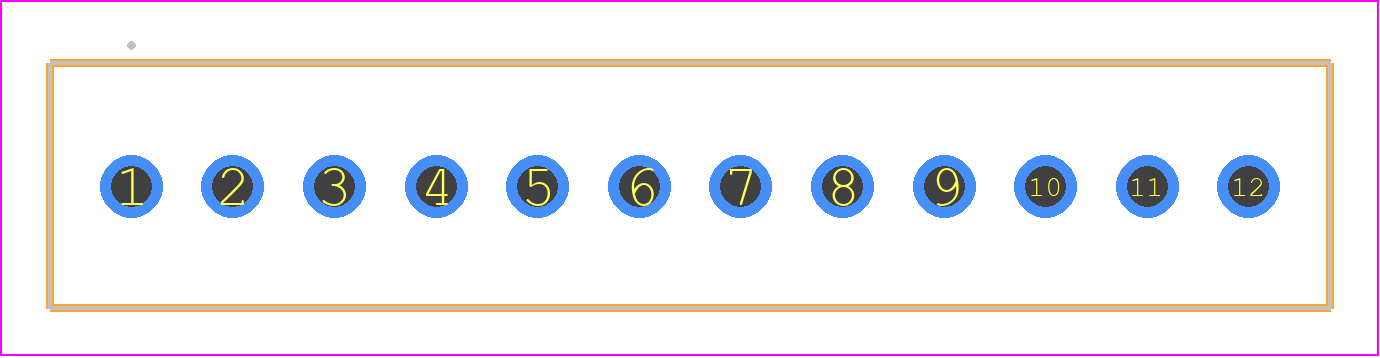

PCB Footprints

IPL1-112-01-L-S-K - SAMTEC PCB footprint - Other - Other - IPL1-112-01-YYY-S-K

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for IPL1-112-01-L-S-K
Part Number IPL1-112-01-L-S-K
Manufacturer SAMTEC
Pin Count 12
Part Category Connector
Package Category Other
Footprint Name Other - IPL1-112-01-YYY-S-K
Released Date Jun 27, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

IPL1-112-01-L-S-K Details

Manufacturer Part Number:
IPL1-112-01-L-S-K
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Vietnam
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
2 Weeks, 6 Days
Manufacturer:
Samtec Inc
YTEOL:
8
Additional Feature:
POLARIZED
Connector Type:
RECTANGULAR POWER CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
MALE
Contact Material:
PHOSPHOR BRONZE
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
LIQUID CRYSTAL POLYMER
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Type:
BOARD
Option:
GENERAL PURPOSE
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
12

IPL1-112-01-L-S-K Frequently Asked Questions (FAQs)

The mating cycle life of the IPL1-112-01-L-S-K connector is 500 cycles, according to Samtec's specifications.
The recommended mating force is 10-20 N (2.2-4.4 lbs) and the recommended unmating force is 5-10 N (1.1-2.2 lbs), according to Samtec's application notes.
Yes, the IPL1-112-01-L-S-K connector is RoHS and REACH compliant, as per Samtec's compliance documentation.
The operating temperature range of the IPL1-112-01-L-S-K connector is -50°C to +105°C, according to Samtec's datasheet.
Yes, the IPL1-112-01-L-S-K connector is designed to withstand high-vibration applications, with a vibration rating of 10-2000 Hz, 10G, according to Samtec's application notes.
