IPL1-113-01-H-D footprint, schematic symbol and 3D model by SAMTEC

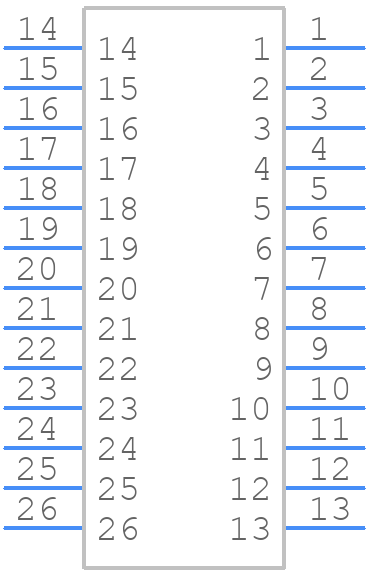

Symbol

click to zoom

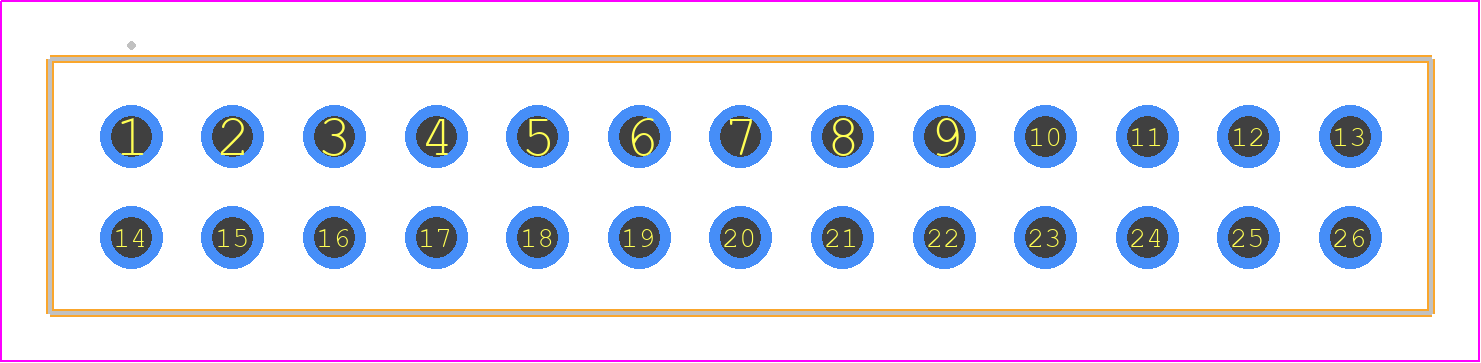

PCB Footprints

IPL1-113-01-H-D - SAMTEC PCB footprint - Other - Other - IPL1-113-01-YYY-D

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for IPL1-113-01-H-D
Part Number IPL1-113-01-H-D
Manufacturer SAMTEC
Pin Count 26
Part Category Connector
Package Category Other
Footprint Name Other - IPL1-113-01-YYY-D
Released Date Jun 27, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

IPL1-113-01-H-D Details

Manufacturer Part Number:
IPL1-113-01-H-D
Manufacturer:
Samtec Inc

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

IPL1-113-01-H-D Overview

Use the download button to access the IPL1-113-01-H-D schematic symbol and PCB footprint.
