IPL1-113-02-L-D-K footprint, schematic symbol and 3D model by SAMTEC

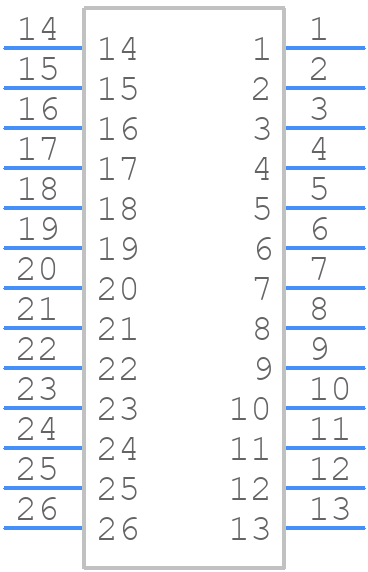

Symbol

click to zoom

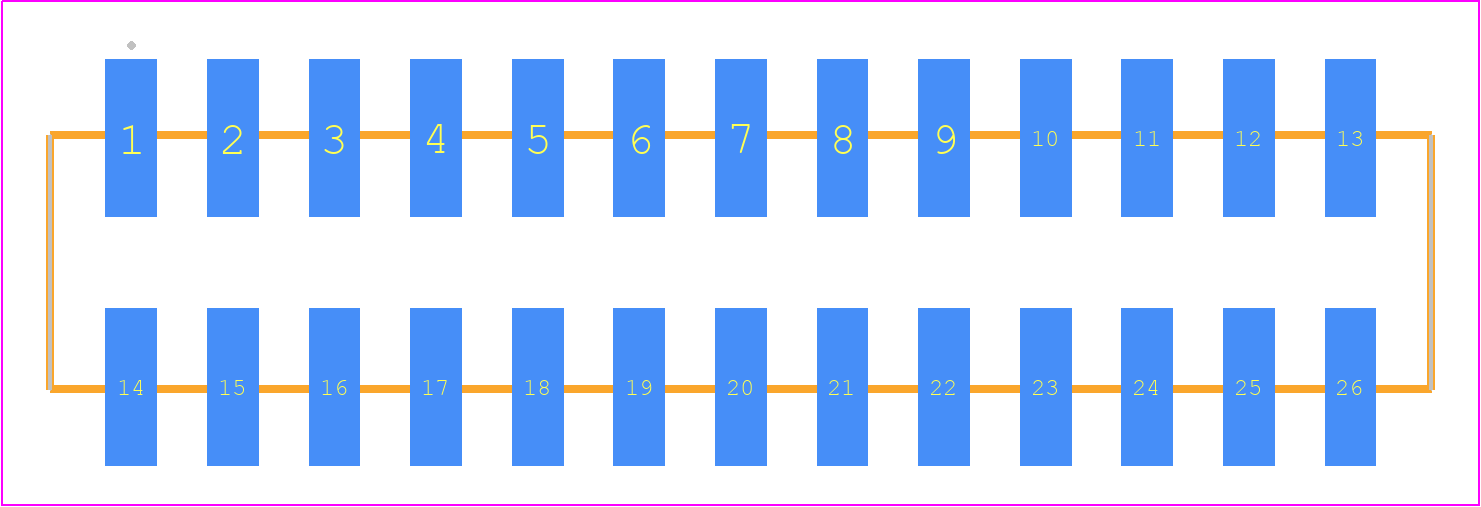

PCB Footprints

IPL1-113-02-L-D-K - SAMTEC PCB footprint - Other - Other - IPL1-113-02-YYY-D-K

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for IPL1-113-02-L-D-K
Part Number IPL1-113-02-L-D-K
Manufacturer SAMTEC
Pin Count 26
Part Category Connector
Package Category Other
Footprint Name Other - IPL1-113-02-YYY-D-K
Released Date Apr 9, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

IPL1-113-02-L-D-K Details

Manufacturer Part Number:
IPL1-113-02-L-D-K
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Malaysia, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Samtec Inc
YTEOL:
8
Additional Feature:
RATED CURRENT (POWER): 4.8A
Body Breadth:
0.25 inch
Body Depth:
0.345 inch
Body Length:
1.36 inch
Connector Type:
RECTANGULAR POWER CONNECTOR
Contact Gender:
MALE
Contact Style:
SQ PIN-SKT
Empty Shell:
NO
Filter Feature:
NO
Insulator Material:
LIQUID CRYSTAL POLYMER
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Type:
BOARD
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
Reference Standard:
UL
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
26
UL Flammability Code:
94V-0

IPL1-113-02-L-D-K Frequently Asked Questions (FAQs)

The recommended torque for the screw locks is 1.5-2.5 in-lbs (0.17-0.28 Nm) to ensure secure mating and prevent damage to the connector.
Yes, IPL1-113-02-L-D-K is designed to withstand high-vibration environments. The screw locks and rugged construction ensure reliable connections even in harsh conditions.
Yes, IPL1-113-02-L-D-K is compatible with lead-free soldering processes and meets RoHS and REACH regulations.
The maximum operating temperature for IPL1-113-02-L-D-K is 125°C (257°F), making it suitable for high-temperature applications.
IPL1-113-02-L-D-K has a moisture-resistant design, but it's not fully waterproof. It can operate in humid environments, but exposure to direct water or immersion is not recommended.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

IPL1-113-02-L-D-K Overview

Use the download button to access the IPL1-113-02-L-D-K schematic symbol and PCB footprint.
