IPL1-115-01-F-D-RA footprint, schematic symbol and 3D model by SAMTEC

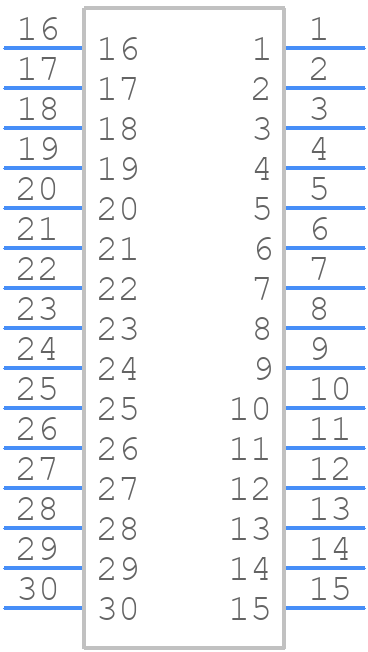

Symbol

click to zoom

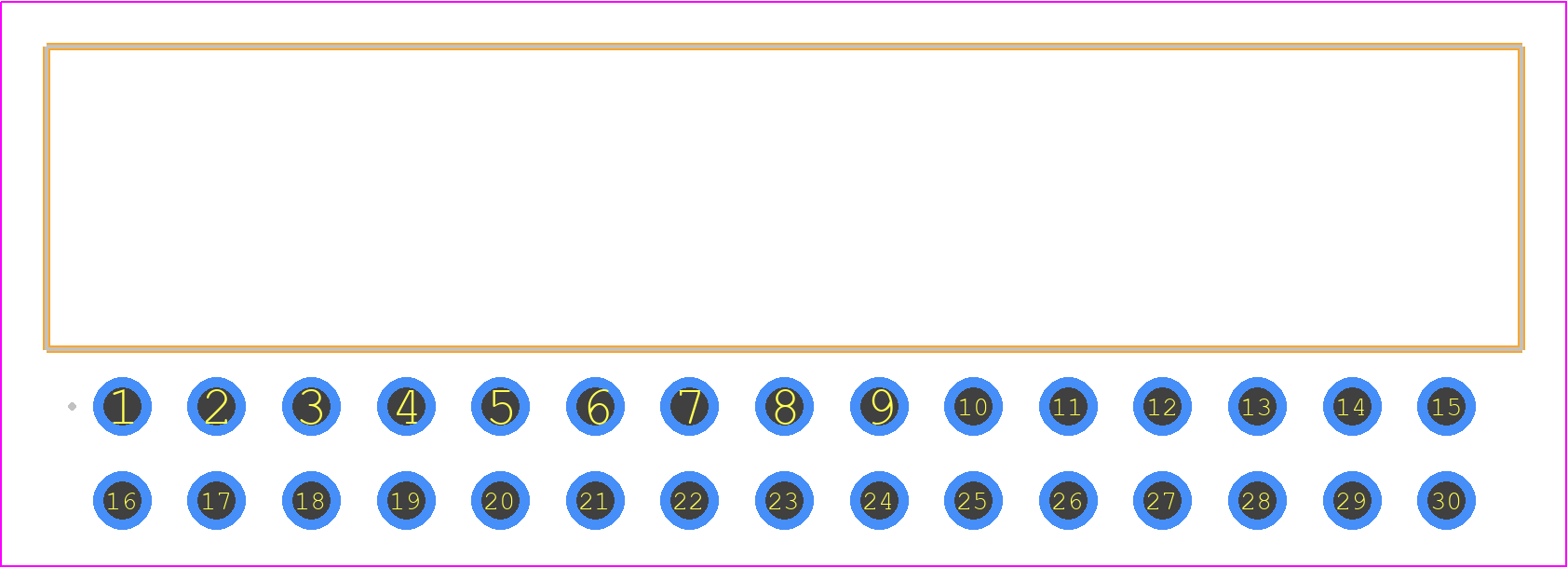

PCB Footprints

IPL1-115-01-F-D-RA - SAMTEC PCB footprint - Other - Other - IPL1-115-01-YYY-D-RA

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for IPL1-115-01-F-D-RA
Part Number IPL1-115-01-F-D-RA
Manufacturer SAMTEC
Pin Count 30
Part Category Connector
Package Category Other
Footprint Name Other - IPL1-115-01-YYY-D-RA
Released Date Jun 27, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

IPL1-115-01-F-D-RA Details

Manufacturer Part Number:
IPL1-115-01-F-D-RA
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Factory Lead Time:
4 Weeks
Manufacturer:
Samtec Inc
YTEOL:
0
Additional Feature:
RATED CURRENT (POWER): 4.8A
Body Breadth:
0.25 inch
Body Depth:
0.48 inch
Body Length:
1.56 inch
Connector Type:
RECTANGULAR POWER CONNECTOR
Contact Gender:
MALE
Contact Style:
SQ PIN-SKT
Empty Shell:
NO
Filter Feature:
NO
Insulator Material:
LIQUID CRYSTAL POLYMER
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Type:
BOARD
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
Reference Standard:
UL
Termination Type:
SOLDER
Total Number of Contacts:
30
UL Flammability Code:
94V-0

IPL1-115-01-F-D-RA Frequently Asked Questions (FAQs)

The recommended torque for the screws on IPL1-115-01-F-D-RA is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
Yes, the IPL1-115-01-F-D-RA is designed to withstand high-vibration environments. Samtec's ruggedized design and secure screw-down mounting ensure reliable connections in demanding applications.
The IPL1-115-01-F-D-RA is rated for operating temperatures up to 125°C (257°F). However, it's essential to consider the specific application and potential thermal stresses to ensure reliable performance.
The IPL1-115-01-F-D-RA has a mating cycle life of 500 cycles minimum, making it suitable for applications that require frequent connections and disconnections.
Yes, the IPL1-115-01-F-D-RA is designed for automated assembly and can be easily integrated into pick-and-place machines and other automated manufacturing systems.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

IPL1-115-01-F-D-RA Overview

Use the download button to access the IPL1-115-01-F-D-RA schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like IPL1-, or try a keyword search, such as Power Connectors
