IPL1-120-01-S-D-K footprint, schematic symbol and 3D model by SAMTEC

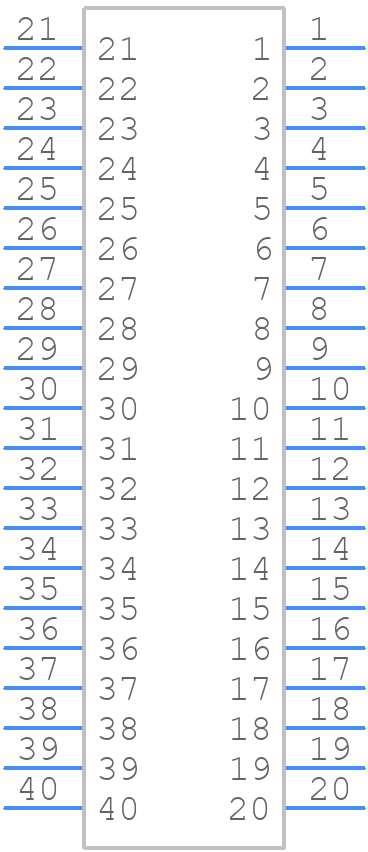

Symbol

click to zoom

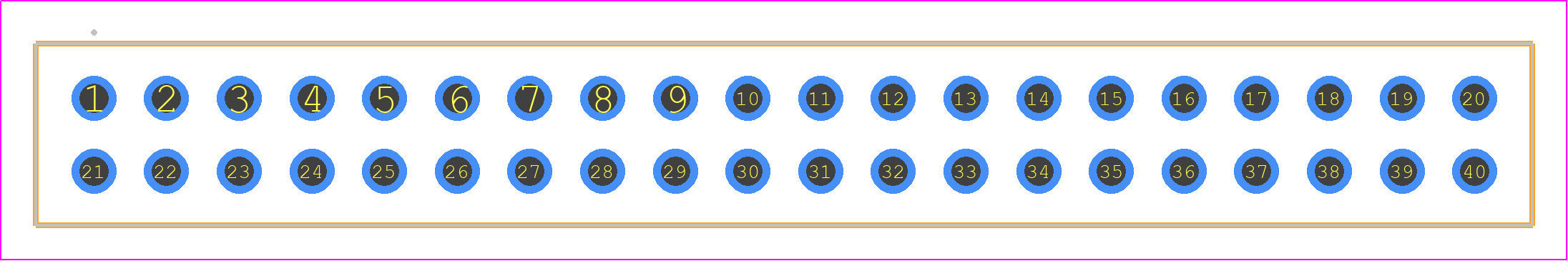

PCB Footprints

IPL1-120-01-S-D-K - SAMTEC PCB footprint - Other - Other - IPL1-120-01-YYY-D-K

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for IPL1-120-01-S-D-K
Part Number IPL1-120-01-S-D-K
Manufacturer SAMTEC
Pin Count 40
Part Category Connector
Package Category Other
Footprint Name Other - IPL1-120-01-YYY-D-K
Released Date Jun 27, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

IPL1-120-01-S-D-K Details

Manufacturer Part Number:
IPL1-120-01-S-D-K
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
USA, Vietnam
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
2 Weeks, 6 Days
Manufacturer:
Samtec Inc
YTEOL:
7.89
Additional Feature:
RATED CURRENT (POWER): 4.8A
Body Breadth:
0.25 inch
Body Depth:
0.32 inch
Body Length:
2.06 inch
Connector Type:
RECTANGULAR POWER CONNECTOR
Contact Gender:
MALE
Contact Style:
SQ PIN-SKT
Empty Shell:
NO
Filter Feature:
NO
Insulator Material:
LIQUID CRYSTAL POLYMER
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Type:
BOARD
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
Reference Standard:
UL
Termination Type:
SOLDER
Total Number of Contacts:
40
UL Flammability Code:
94V-0

IPL1-120-01-S-D-K Frequently Asked Questions (FAQs)

The recommended torque for the screw locks is 1.5-2.5 in-lbs (0.17-0.28 Nm) to ensure secure mating and prevent damage to the connector.
Yes, IPL1-120-01-S-D-K is designed to withstand high-vibration environments. The screw locks and rugged construction ensure reliable connections even in harsh conditions.
The operating temperature range for IPL1-120-01-S-D-K is -55°C to +125°C, making it suitable for a wide range of applications, including industrial, automotive, and aerospace.
Yes, IPL1-120-01-S-D-K is compatible with lead-free soldering processes, making it suitable for RoHS-compliant applications.
The mating cycle life for IPL1-120-01-S-D-K is 500 cycles minimum, ensuring reliable connections even in applications with frequent mating and unmating.
