IPS1-110-01-S-D-RA footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

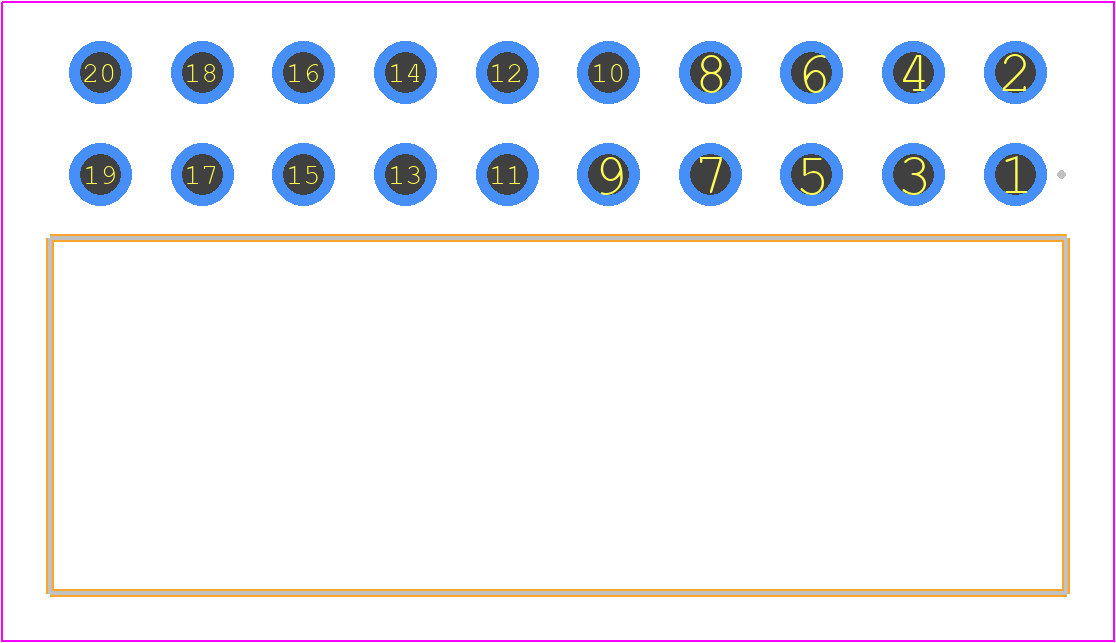

IPS1-110-01-S-D-RA - SAMTEC PCB footprint - Other - Other - IPS1-110-01-YY-D-RA

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for IPS1-110-01-S-D-RA
Part Number IPS1-110-01-S-D-RA
Manufacturer SAMTEC
Pin Count 20
Part Category Connector
Package Category Other
Footprint Name Other - IPS1-110-01-YY-D-RA
Released Date Jun 27, 2020
Last Modified Date Sep 9, 2025 9:48 AM UTC
Pinout / Pin List Click Here (Member Only)

IPS1-110-01-S-D-RA Details

Manufacturer Part Number:
IPS1-110-01-S-D-RA
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
Country Of Origin:
Mainland China, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
1 Week
Manufacturer:
Samtec Inc
YTEOL:
8
Additional Feature:
SHROUDED
Body/Shell Style:
SOCKET
Connector Type:
RECTANGULAR POWER CONNECTOR
Contact Finish Mating:
GOLD
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
FEMALE
Contact Material:
PHOSPHOR BRONZE
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e3
MIL Conformance:
NO
Mixed Contacts:
NO
Mounting Type:
BOARD
Option:
GENERAL PURPOSE
Termination Type:
SOLDER
Total Number of Contacts:
20

IPS1-110-01-S-D-RA Frequently Asked Questions (FAQs)

The recommended torque for the screws on the IPS1-110-01-S-D-RA connector is 0.5-1.5 in-lbs (0.056-0.169 Nm).
Yes, the IPS1-110-01-S-D-RA connector is designed to withstand high-vibration environments and is suitable for applications where shock and vibration are a concern.
Yes, the IPS1-110-01-S-D-RA connector is designed to operate in harsh environments, including high temperatures up to 125°C and high humidity. However, it's recommended to consult with Samtec's application engineers for specific environmental requirements.
The IPS1-110-01-S-D-RA connector has a mating cycle life of 500 cycles minimum, making it suitable for applications where frequent mating and unmating are required.
Yes, the IPS1-110-01-S-D-RA connector is designed to be compatible with automated assembly processes, including pick-and-place machines and robotic assembly systems.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

IPS1-110-01-S-D-RA Overview

Use the download button to access the IPS1-110-01-S-D-RA schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like IPS1-, or try a keyword search, such as Power Connectors
