IPS1-111-01-S-D-VS footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

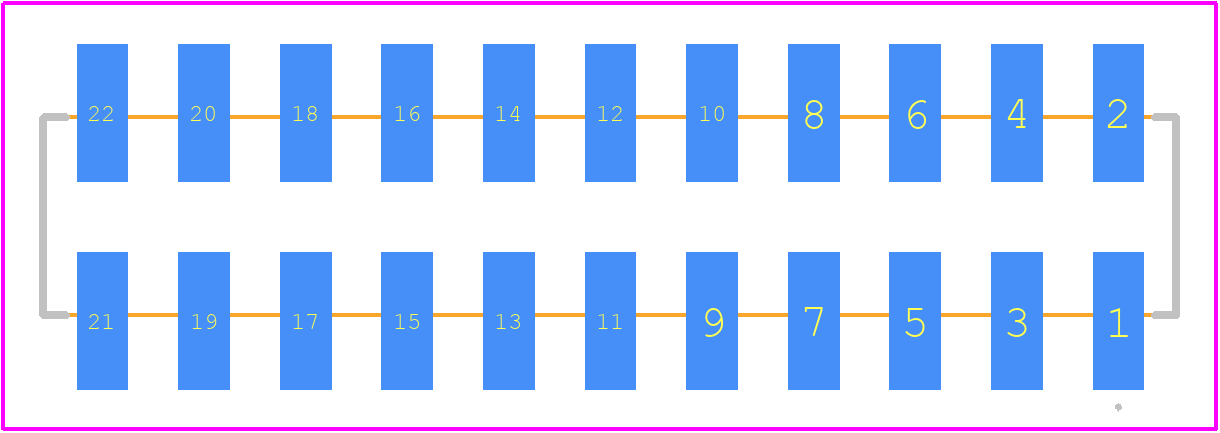

IPS1-111-01-S-D-VS - SAMTEC PCB footprint - Other - Other - IPS1-111-01-S-D-VS-1

click to zoom

3D Models

IPS1-111-01-S-D-VS - SAMTEC - 3D model - Other - IPS1-111-01-S-D-VS-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for IPS1-111-01-S-D-VS
Part Number IPS1-111-01-S-D-VS
Manufacturer SAMTEC
Pin Count 22
Part Category Connector
Package Category Other
Footprint Name Other - IPS1-111-01-S-D-VS-1
Released Date May 30, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

IPS1-111-01-S-D-VS Details

Manufacturer Part Number:
IPS1-111-01-S-D-VS
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Mainland China, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Samtec Inc
Connector Type:
RECTANGULAR POWER CONNECTOR
Contact Finish Mating:
GOLD
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Material:
PHOSPHOR BRONZE
DIN Conformance:
NO
IEC Conformance:
NO
JESD-609 Code:
e3
MIL Conformance:
NO

IPS1-111-01-S-D-VS Frequently Asked Questions (FAQs)

The operating temperature range of IPS1-111-01-S-D-VS is -65°C to 125°C.
Yes, IPS1-111-01-S-D-VS is RoHS and REACH compliant, making it suitable for use in European Union and other countries with similar regulations.
The mating force required for IPS1-111-01-S-D-VS is approximately 1.2 N (0.27 lbf) per contact.
Yes, IPS1-111-01-S-D-VS is designed to withstand high-vibration applications, with a vibration rating of 10-2000 Hz, 10G peak acceleration.
The MSL of IPS1-111-01-S-D-VS is 1, which means it can withstand exposure to normal humidity and temperature conditions without requiring special handling or storage.

Trust Checks

Community Provided

System Verified

Community Approved

IPS1-111-01-S-D-VS Overview

Use the download button to access the IPS1-111-01-S-D-VS schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like IPS1-, or try a keyword search, such as Power Connectors
