IPS1-115-01-S-D - SAMTEC

Description: 30 Position, .100" Mini Mate® Isolated Power Connector Socket Strip

Download IPS1-115-01-S-D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
IPS1-115-01-S-D - SAMTEC - PCB symbol
click to zoom
PCB Footprints

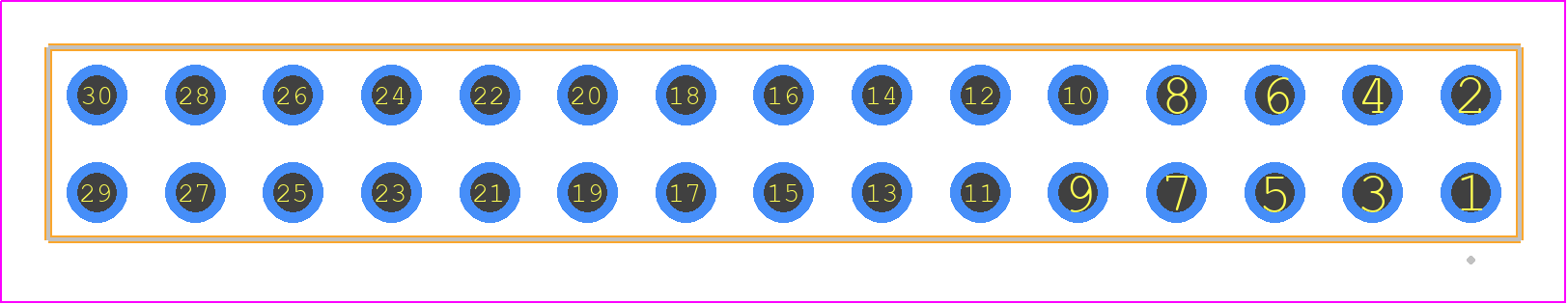

IPS1-115-01-S-D - SAMTEC PCB footprint - Other - Other - IPS1-115-XX-YY-D
click to zoom
3D Models
IPS1-115-01-S-D - SAMTEC - 3D model - Other - IPS1-115-XX-YY-D
click to zoom

IPS1-115-01-S-D Details

  • Manufacturer Part Number:

    IPS1-115-01-S-D

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    1 Week

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    8

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    GOLD

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Material:

    PHOSPHOR BRONZE

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    30

IPS1-115-01-S-D Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the IPS1-115-01-S-D connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
  • Yes, the IPS1-115-01-S-D connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, which means it can withstand vibrations up to 15g peak acceleration.
  • Yes, the IPS1-115-01-S-D connector is compatible with lead-free soldering processes. Samtec recommends using a soldering temperature of 260°C (500°F) for a maximum of 10 seconds.
  • The maximum operating temperature of the IPS1-115-01-S-D connector is 125°C (257°F). However, Samtec recommends derating the connector's current rating at higher temperatures.
  • The IPS1-115-01-S-D connector is not designed for use in humid or wet environments. It does not have any special coatings or seals to protect it from moisture. If you need a connector for a humid or wet environment, you should consider a different product.
