IPS1-120-01-S-D-PL - SAMTEC

Description: Power to the Board .100 Mini Mate Isolated Power Connector Socket Strip 40 Position , -55℃ ~ +125℃

Download IPS1-120-01-S-D-PL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

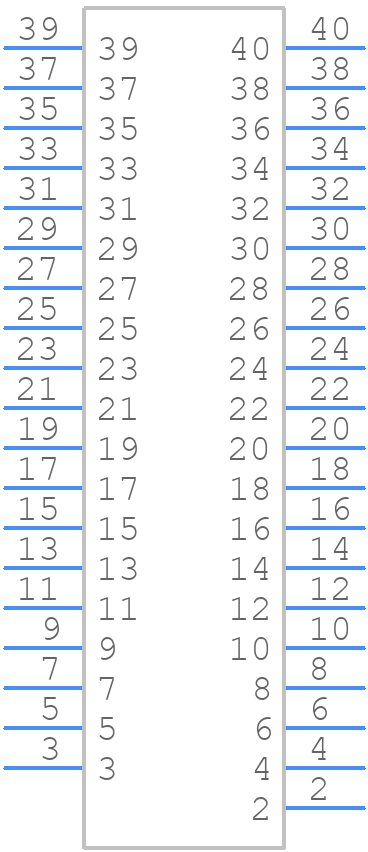

Symbol
IPS1-120-01-S-D-PL - SAMTEC - PCB symbol
click to zoom

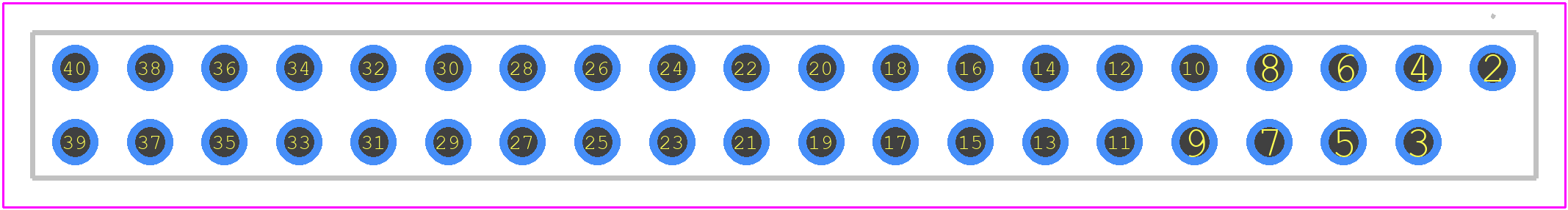

PCB Footprints
IPS1-120-01-S-D-PL - SAMTEC PCB footprint - Other - Other - IPS1-120-01-S-D-PL-1
click to zoom
3D Models
IPS1-120-01-S-D-PL - SAMTEC - 3D model - Other - IPS1-120-01-S-D-PL-1
click to zoom

IPS1-120-01-S-D-PL Details

  • Manufacturer Part Number:

    IPS1-120-01-S-D-PL

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    2 Weeks, 5 Days

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    8

  • Additional Feature:

    POLARIZED; RATED CURRENT(POWER):5.9 A

  • Body Breadth:

    0.195 inch

  • Body Depth:

    0.335 inch

  • Body Length:

    2.015 inch

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    40

IPS1-120-01-S-D-PL Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the IPS1-120-01-S-D-PL connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
  • Yes, the IPS1-120-01-S-D-PL connector is designed to withstand vibration and shock according to IEC 61373 Cat 2, making it suitable for use in high-vibration environments.
  • The IPS1-120-01-S-D-PL connector has an operating temperature range of -55°C to +125°C, making it suitable for use in a wide range of applications.
  • Yes, the IPS1-120-01-S-D-PL connector is RoHS and REACH compliant, meeting the requirements of the European Union's directives on hazardous substances.
  • The IPS1-120-01-S-D-PL connector has a mating cycle life of 500 cycles minimum, making it suitable for use in applications where frequent mating and unmating is required.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IPS1-120-01-S-D-PL Overview

Use the download button to access the IPS1-120-01-S-D-PL schematic symbol, PCB footprint, and 3D model.
