IPS1025HQ - STMicroelectronics

Description: High efficiency, high-side switch with extended diagnostics and smart driving for capacitive loads

Download IPS1025HQ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

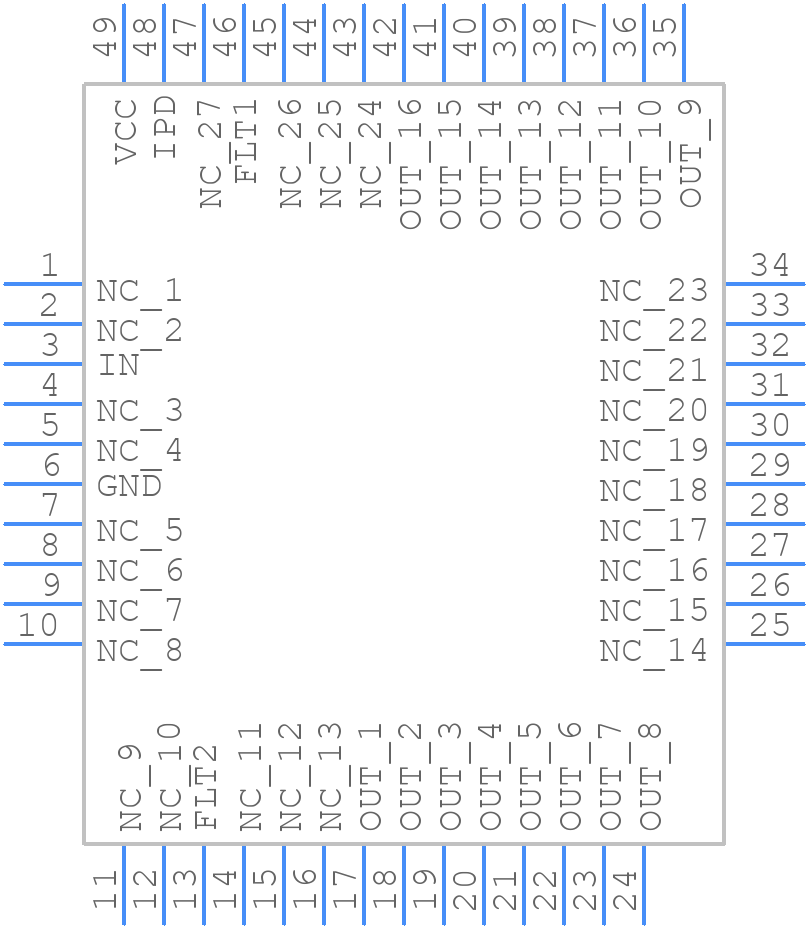

Symbol
IPS1025HQ - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
IPS1025HQ - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - VFQFPN 48L 8.0 X 6.0 X .90 PITCH
click to zoom
3D Models
IPS1025HQ - STMicroelectronics - 3D model - Quad Flat No-Lead - VFQFPN 48L 8.0 X 6.0 X .90 PITCH
click to zoom

IPS1025HQ Details

  • Manufacturer Part Number:

    IPS1025HQ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    25 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    11

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

IPS1025HQ Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN5323, which includes guidelines for thermal pad connection, copper pouring, and via placement to ensure optimal thermal performance.
  • The selection of the inductor depends on the specific application requirements, such as output voltage, current, and switching frequency. STMicroelectronics provides a list of recommended inductors in the datasheet, and also offers an inductor selection tool on their website.
  • The maximum junction temperature of the IPS1025HQ is 150°C, as specified in the datasheet. However, it's recommended to keep the junction temperature below 125°C for optimal reliability and performance.
  • Yes, the IPS1025HQ is qualified for operation up to 125°C ambient temperature, making it suitable for high-temperature applications. However, the device's performance and reliability may degrade at higher temperatures, and additional thermal management may be required.
  • STMicroelectronics provides guidelines for EMC design and layout in the application note AN5323, which includes recommendations for PCB layout, component selection, and shielding to minimize electromagnetic interference.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IPS1025HQ Overview

Use the download button to access the IPS1025HQ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IPS10, or try a keyword search, such as Peripheral Drivers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
