IPS1025HTR - STMicroelectronics

Description: High efficiency, high-side switch with extended diagnostics and smart driving for capacitive loads

Download IPS1025HTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

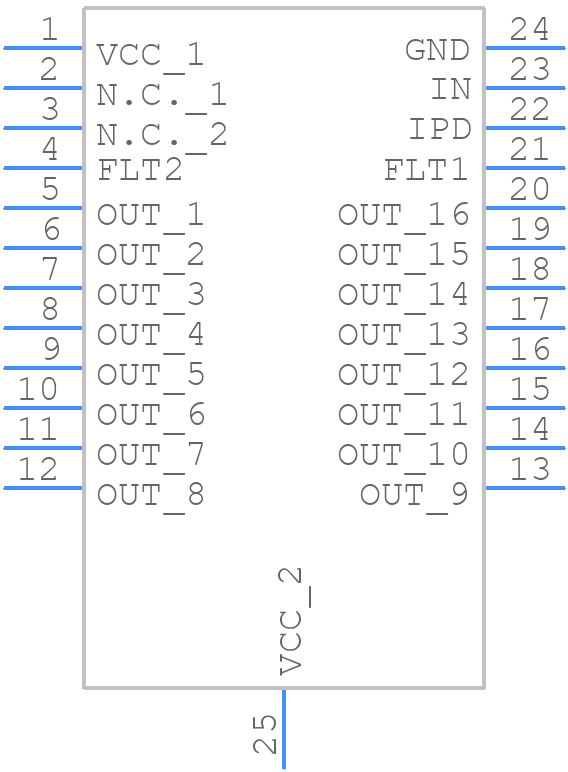

Symbol
IPS1025HTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
IPS1025HTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSSO-24 1
click to zoom
3D Models
IPS1025HTR - STMicroelectronics - 3D model - Small Outline Packages - PowerSSO-24 1
click to zoom

IPS1025HTR Details

  • Manufacturer Part Number:

    IPS1025HTR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-24

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    25 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    11

  • Built-in Protections:

    OVERLOAD; OVER VOLTAGE; TRANSIENT

  • Driver Number of Bits:

    1

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G24

  • Length:

    10.3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current Flow Direction:

    SINK

  • Output Current-Max:

    2.4 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSSOP

  • Package Equivalence Code:

    SSOP24,.4,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    2.42 mm

  • Supply Current-Max:

    2.55 mA

  • Supply Voltage-Max:

    60 V

  • Supply Voltage-Min:

    8 V

  • Supply Voltage-Nom:

    24 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Turn-off Time:

    100 µs

  • Turn-on Time:

    25 µs

  • Width:

    7.5 mm

IPS1025HTR Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN5323, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • The IPS1025HTR requires a specific biasing scheme to operate within its recommended operating conditions. Refer to the application note AN5323, which provides a detailed biasing circuit and guidelines for selecting the correct resistors and capacitors.
  • While the datasheet specifies the recommended operating voltage range, it's essential to note that the input pins have an absolute maximum rating of 6V. Exceeding this voltage can cause permanent damage to the device.
  • STMicroelectronics recommends implementing ESD protection measures, such as adding TVS diodes or ESD protection arrays, to prevent damage from electrostatic discharge. Refer to the application note AN5323 for more information on ESD protection strategies.
  • While the datasheet specifies the operating temperature range, it's essential to note that the recommended storage temperature range is -40°C to 125°C. Storing the device outside this range can affect its reliability and performance.
