IPS160H - STMicroelectronics

Description: Power Switch ICs - Power Distribution IND. & POWER CONV.

Download IPS160H Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

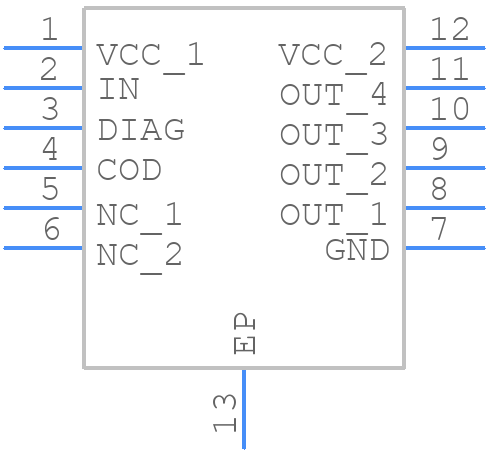

IPS160H - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
IPS160H - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSSO-12
click to zoom
3D Models
IPS160H - STMicroelectronics - 3D model - Small Outline Packages - PowerSSO-12
click to zoom

IPS160H Details

  • Manufacturer Part Number:

    IPS160H

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Morocco

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Driver Number of Bits:

    1

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G12

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    12

  • Output Current-Max:

    2.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SOP12,.25,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

IPS160H Frequently Asked Questions (FAQs)

  • The IPS160H can operate from -40°C to 150°C, making it suitable for high-reliability applications.
  • The IPS160H requires a single 5V supply voltage (VCC) and a separate voltage supply (VPP) for the programming voltage, which can be up to 12V.
  • The VPP (Programming Voltage) pin is used to provide a higher voltage (up to 12V) for programming the device, ensuring reliable programming and erasing of the memory.
  • Yes, the IPS160H has built-in noise filtering and is designed to operate in noisy environments, making it suitable for industrial and automotive applications.
  • The IPS160H can be interfaced with a microcontroller using a standard SPI (Serial Peripheral Interface) protocol, allowing for easy communication and data transfer.
