IPS160HFTR - STMicroelectronics

Description: 60 V, 60 mΩ single high-side switches with short start-up propagation delay

Download IPS160HFTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

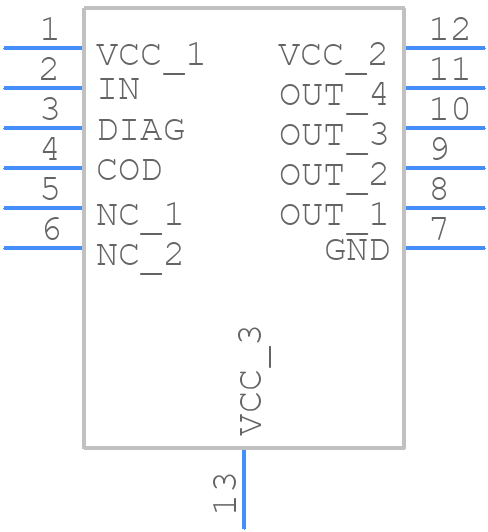

IPS160HFTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
IPS160HFTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSSO-12
click to zoom
3D Models
IPS160HFTR - STMicroelectronics - 3D model - Small Outline Packages - PowerSSO-12
click to zoom

IPS160HFTR Details

  • Manufacturer Part Number:

    IPS160HFTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Morocco

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

IPS160HFTR Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for IPS160HFTR is -40°C to 150°C.
  • To ensure reliability, it's essential to follow proper thermal management practices, such as providing adequate heat sinking and ensuring good airflow around the device.
  • To minimize EMI, it's recommended to use a multi-layer PCB with a solid ground plane, keep the device away from noise sources, and use shielding if necessary.
  • Yes, IPS160HFTR is AEC-Q100 qualified, making it suitable for use in automotive applications.
  • To troubleshoot, check the device's pinout and connections, ensure proper power supply and decoupling, and verify that the device is not overheating.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IPS160HFTR Overview

Use the download button to access the IPS160HFTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IPS16, or try a keyword search, such as Peripheral Drivers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
