IPS2050HTR-32 - STMicroelectronics

Description: High efficiency, high-side switch with extended diagnostics and smart driving for capacitive loads

Download IPS2050HTR-32 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

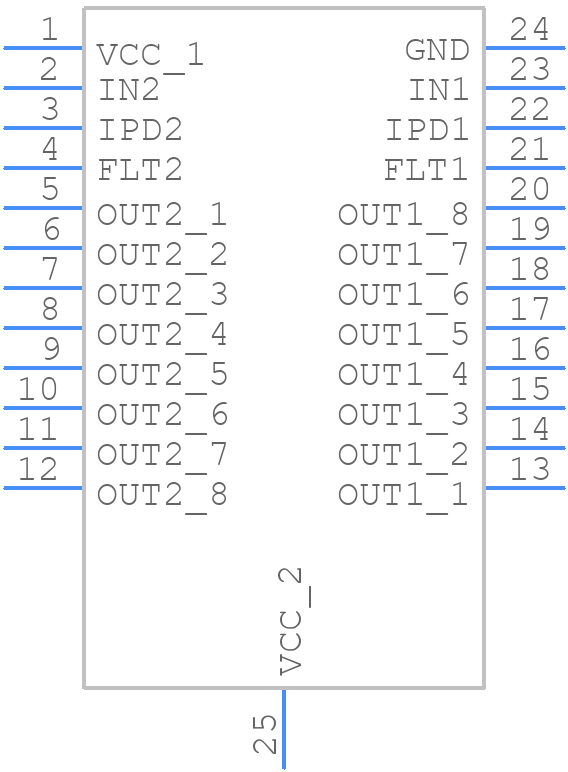

IPS2050HTR-32 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
IPS2050HTR-32 - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSSO-24_2022-1
click to zoom
3D Models
IPS2050HTR-32 - STMicroelectronics - 3D model - Small Outline Packages - PowerSSO-24_2022-1
click to zoom

IPS2050HTR-32 Details

  • Manufacturer Part Number:

    IPS2050HTR-32

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-24

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    25 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    10

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; THERMAL; UNDER VOLTAGE; OVER VOLTAGE; OVERLOAD

  • Driver Number of Bits:

    1

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e4

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current Flow Direction:

    SINK

  • Output Peak Current Limit-Nom:

    5.6 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSSOP

  • Package Equivalence Code:

    SSOP24,.4,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.42 mm

  • Supply Current-Max:

    3.5 mA

  • Supply Voltage-Max:

    60 V

  • Supply Voltage-Min:

    8 V

  • Supply Voltage-Nom:

    24 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    60 µs

  • Turn-on Time:

    25 µs

  • Width:

    7.5 mm

IPS2050HTR-32 Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to ensure optimal thermal performance.
  • To ensure reliable operation in high-temperature environments, it is recommended to derate the device's current rating according to the temperature derating curve provided in the datasheet, and to ensure good thermal conduction to a heat sink or heat spreader.
  • STMicroelectronics recommends a gate drive circuit with a low impedance output stage and a voltage swing of at least 10V to ensure optimal switching performance. A gate resistor value of 10-20 ohms is also recommended to dampen oscillations.
  • To protect the device from overvoltage and overcurrent conditions, it is recommended to use a voltage clamp circuit and a current sense resistor in series with the device. A fuse or a current limiter can also be used to protect the device from overcurrent conditions.
  • To prevent damage, it is recommended to store the device in a dry, cool place away from direct sunlight and moisture. The device should be handled with anti-static precautions, such as using an anti-static wrist strap or mat, to prevent electrostatic discharge damage.
